Components [06/2018 - ]

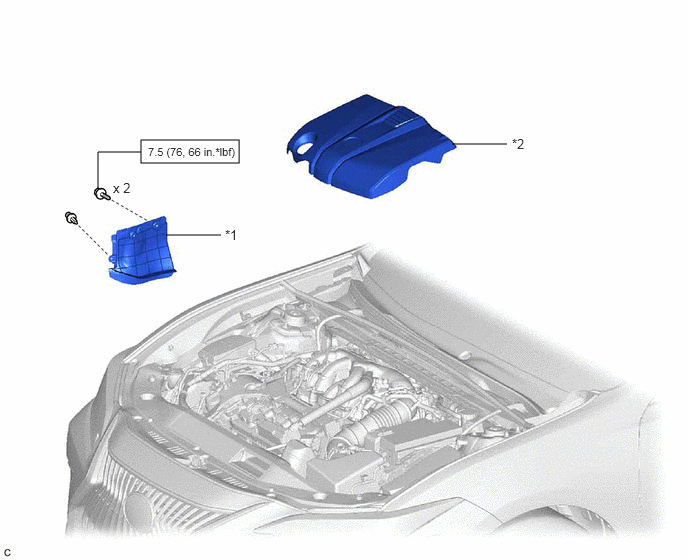

Fig 1: Camshaft Oil Control Valve (For Intake Side Of Bank 1) Replacement Components With Torque Specifications (1 Of 2)
| *1 | FRONT FENDER APRON SEAL RH | *2 | V-BANK COVER SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

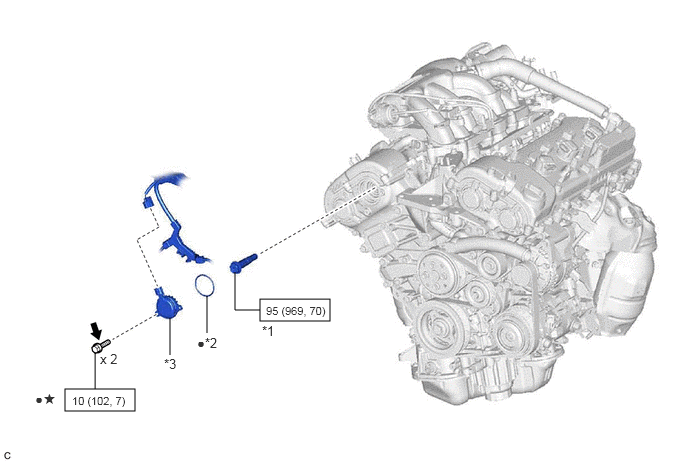

Fig 2: Camshaft Oil Control Valve (For Intake Side Of Bank 1) Replacement Components With Torque Specifications (2 Of 2)
| *1 | CAMSHAFT TIMING GEAR BOLT | *2 | O-RING |
| *3 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
