Removal [06/2018 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - ]

  2. REMOVE DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY)
    1. Disconnect the drive mode select switch (combination switch assembly) connector.

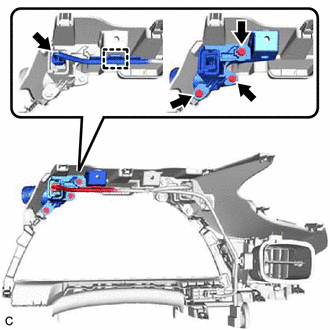

      GTY834843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to disconnect the wire harness from the instrument cluster finish panel assembly.
    3. Remove the 3 screws and drive mode select switch (combination switch assembly) from the instrument cluster finish panel assembly.
