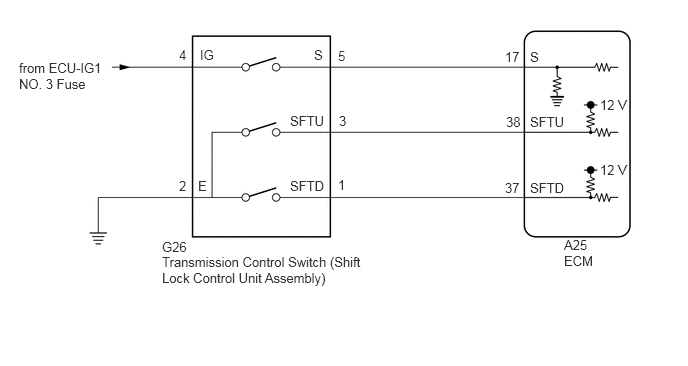

Transmission Control Switch Circuit [06/2018 - ]: Wiring Diagram

GTY817943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
