Automatic Transmission System (UA80E) - Diagnostic Codes (1 Of 3)
>>
Automatic Transaxle System
>>
DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [06/2018 - ]
>>

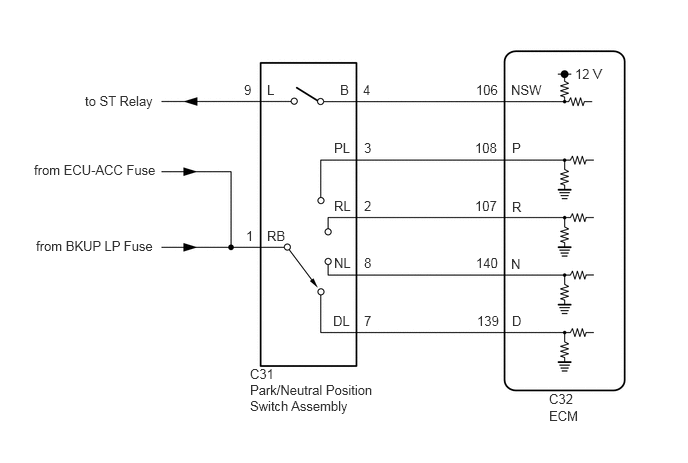

Wiring Diagram
DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [06/2018 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
