System Diagram [06/2018 - 09/2022]

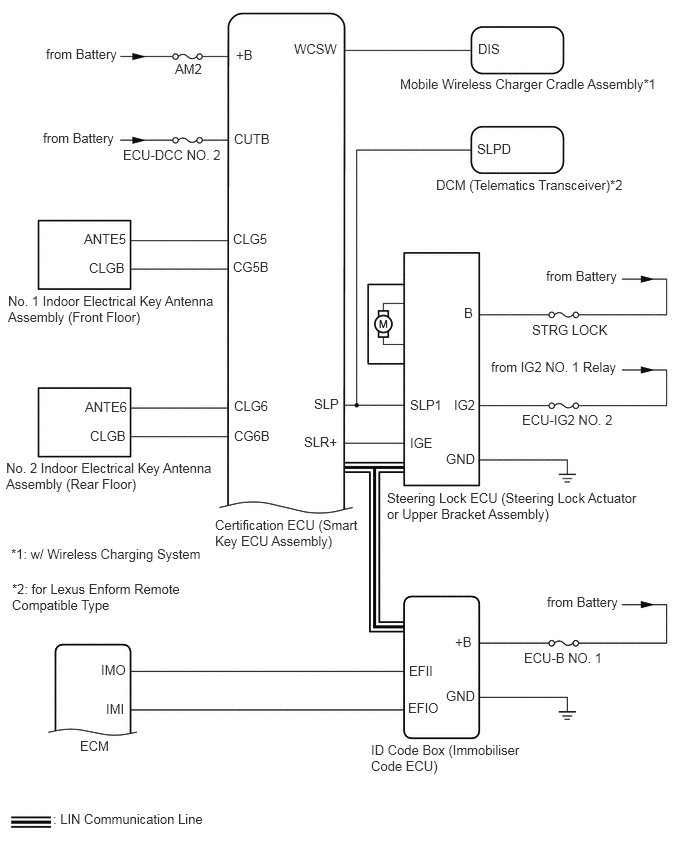

Fig 1: Smart Access System (For Start Function) Wiring Diagram (1 Of 3)
GTY823457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

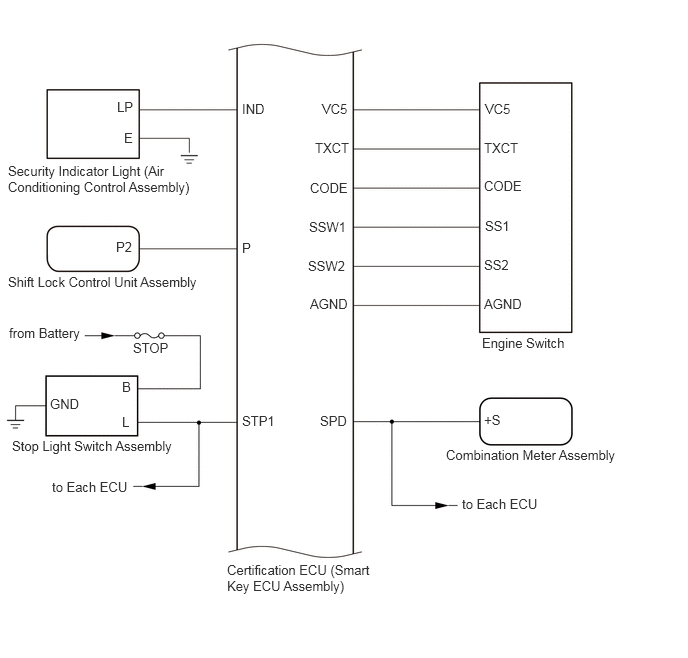

Fig 2: Smart Access System (For Start Function) Wiring Diagram (2 Of 3)
GTY777155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

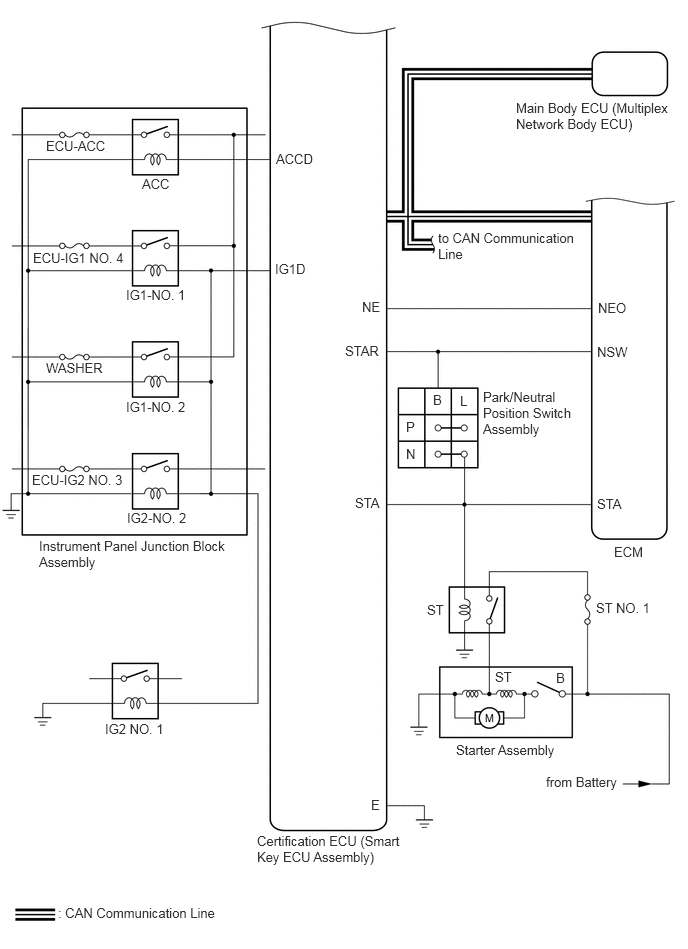

Fig 3: Smart Access System (For Start Function) Wiring Diagram (3 Of 3)
GTY827947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function, Gasoline Model)

    Refer to SYSTEM DIAGRAM [06/2018 - ]
