Components [06/2018 - ]

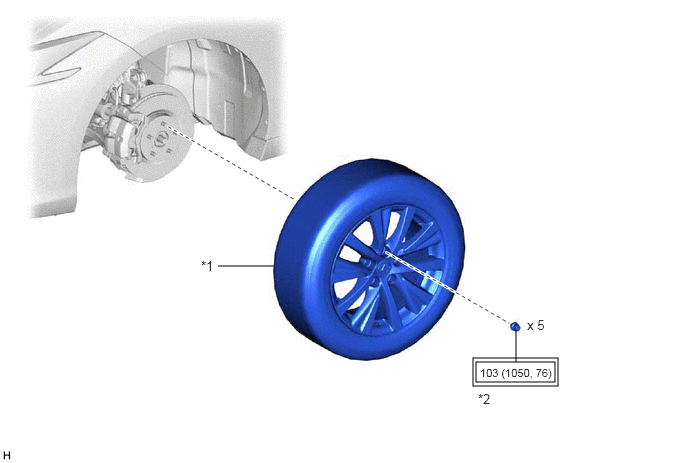

Fig 1: Tire And Wheel With Torque Specifications [06/2018 - ]
GTY820770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 WHEEL ASSEMBLY *2 AXLE HUB NUT
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
