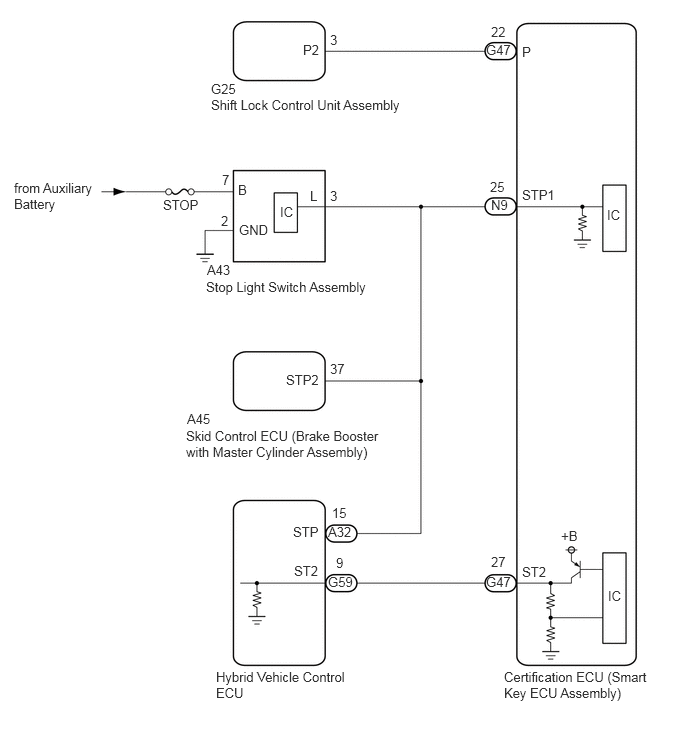

Power Source Mode does not Change to ON (READY) [06/2018 - 08/2020]: Wiring Diagram

GTY837206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
