SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function, HV Model)
>>
DTC B2285: Steering Lock Position Signal Circuit Malfunction [06/2018 - 10/2019]
>>
Wiring Diagram
DTC B2285: Steering Lock Position Signal Circuit Malfunction [06/2018 - 10/2019]: Wiring Diagram

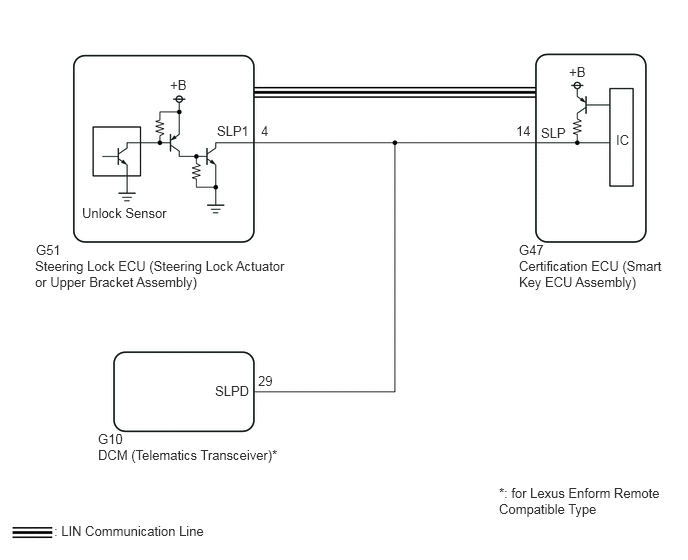

Fig 1: DTC B2285: Steering Lock Position Signal Circuit Malfunction [06/2018 - 10/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
