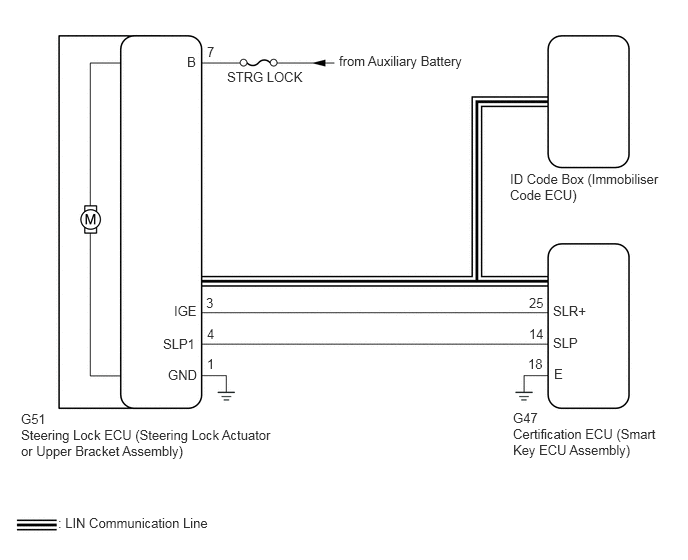

Unable to Unlock Steering Wheel (Hybrid Control System cannot Start) [06/2018 - 09/2022]: Wiring Diagram

GTY807952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
