DTC B2285: Steering Lock Position Signal Circuit Malfunction [10/2019 - 09/2022]: Wiring Diagram

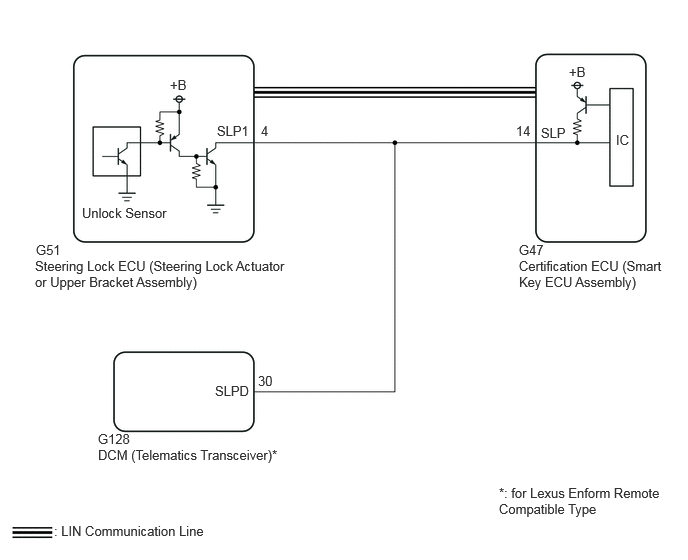

Fig 1: DTC B2285: Steering Lock Position Signal Circuit Malfunction [10/2019 - 09/2022]
GTY949320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
