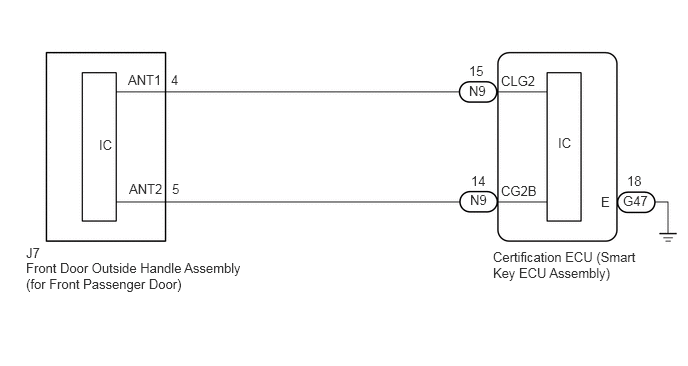

Front Passenger Side Door Entry Lock Function does not Operate [06/2018 - ]: Wiring Diagram

GTY783951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
