Removal [08/2020 - 08/2021]: Procedure

  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL [08/2020 - 08/2021]

  2. REMOVE PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 19

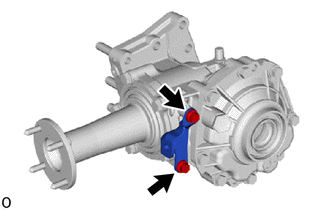

  3. REMOVE NO. 1 PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY
    1. Remove the 2 bolts and No. 1 propeller shaft heat insulator bracket sub-assembly from the transfer assembly.
      GTY934333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

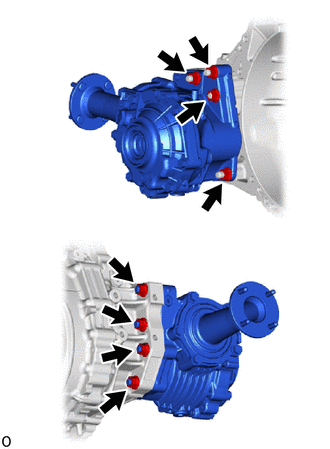

  5. REMOVE TRANSFER ASSEMBLY
    1. Remove the 8 nuts and transfer assembly from the automatic transaxle assembly.
      GTY869846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
