Components [06/2018 - ]

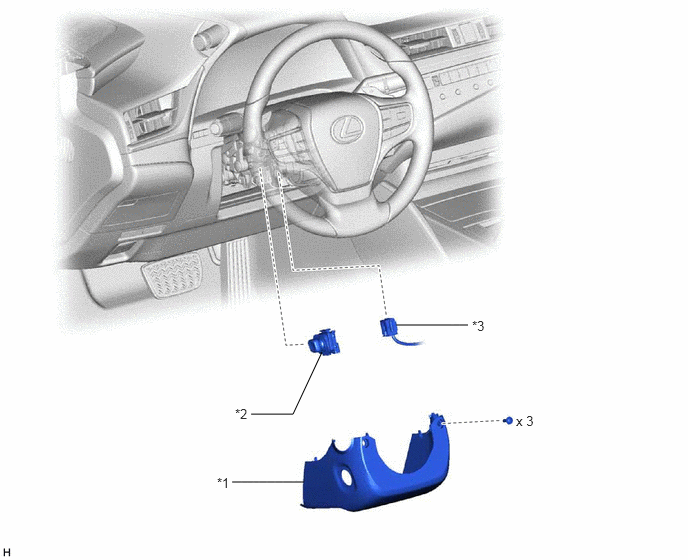

Fig 1: Tilt And Telescopic Manual Switch Replacement Components
GTY774877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LOWER STEERING COLUMN COVER SUB-ASSEMBLY *2 TILT AND TELESCOPIC SWITCH
*3 SPIRAL CABLE CONNECTOR - -
