Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.
    2. Remove the 2 screws.

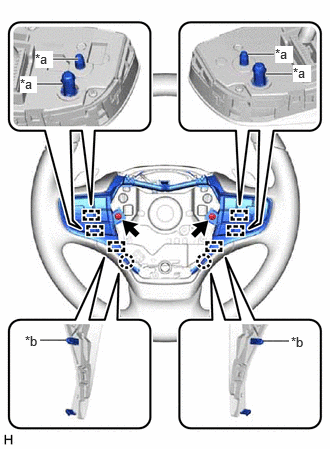

      GTY811164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
    3. Disengage the 4 pins, 2 guides and 2 claws to remove the steering pad switch assembly.
