Components [06/2018 - ]

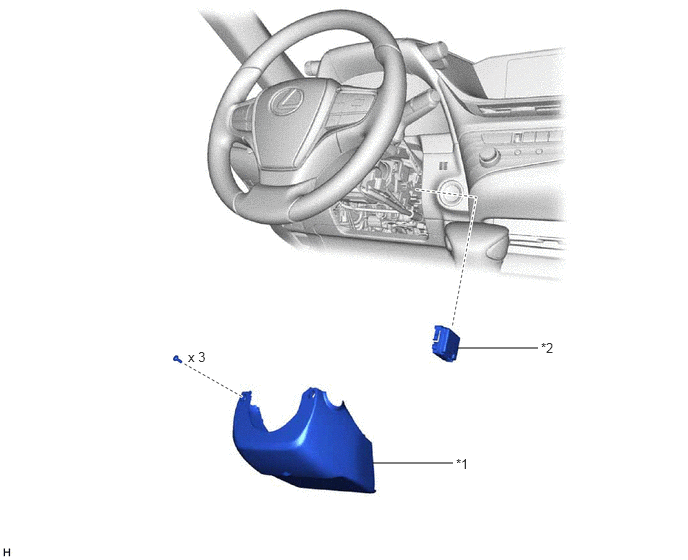

Fig 1: Multiplex Tilt And Telescopic ECU Replacement Components
GTY822703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LOWER STEERING COLUMN COVER SUB-ASSEMBLY *2 MULTIPLEX TILT AND TELESCOPIC ECU
