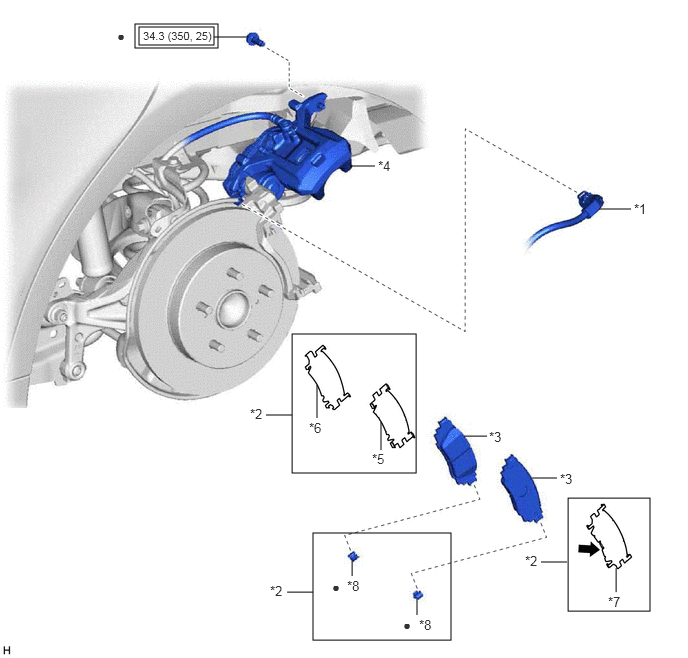

Components [06/2018 - ]
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR DISC BRAKE ANTI-SQUEAL SHIM KIT |
| *3 | REAR DISC BRAKE PAD | *4 | REAR DISC BRAKE CYLINDER ASSEMBLY |
| *5 | REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM | *6 | REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM |
| *7 | REAR DISC BRAKE ANTI-SQUEAL SHIM | *8 | REAR DISC BRAKE PAD WEAR INDICATOR PLATE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Brake shim grease (Part No. 08887-80409) | - | - |
