System Diagram [07/2019 - 10/2019]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

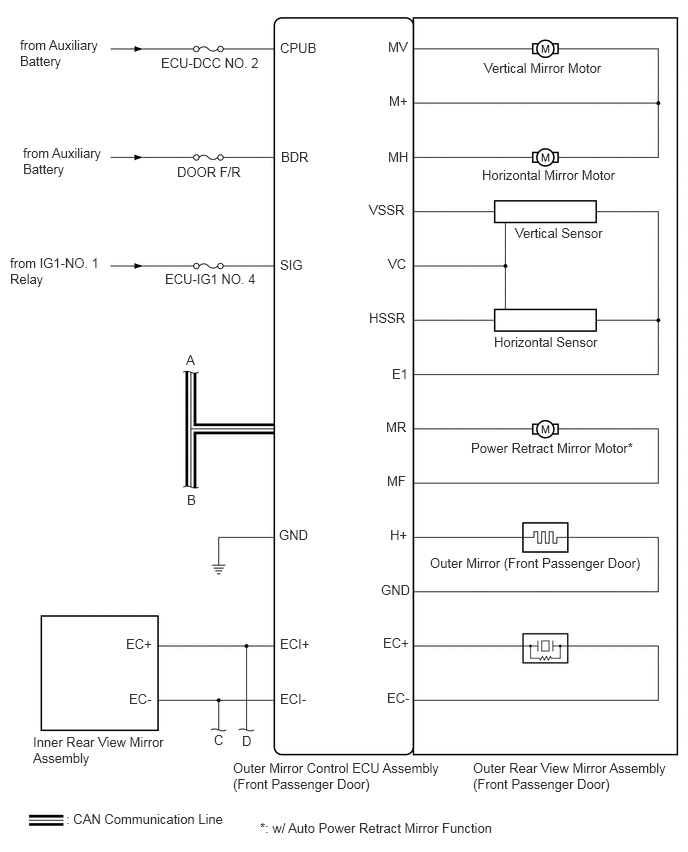

Fig 1: Power Mirror Control (With Memory) Wiring Diagram (07/2019 - 10/2019) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

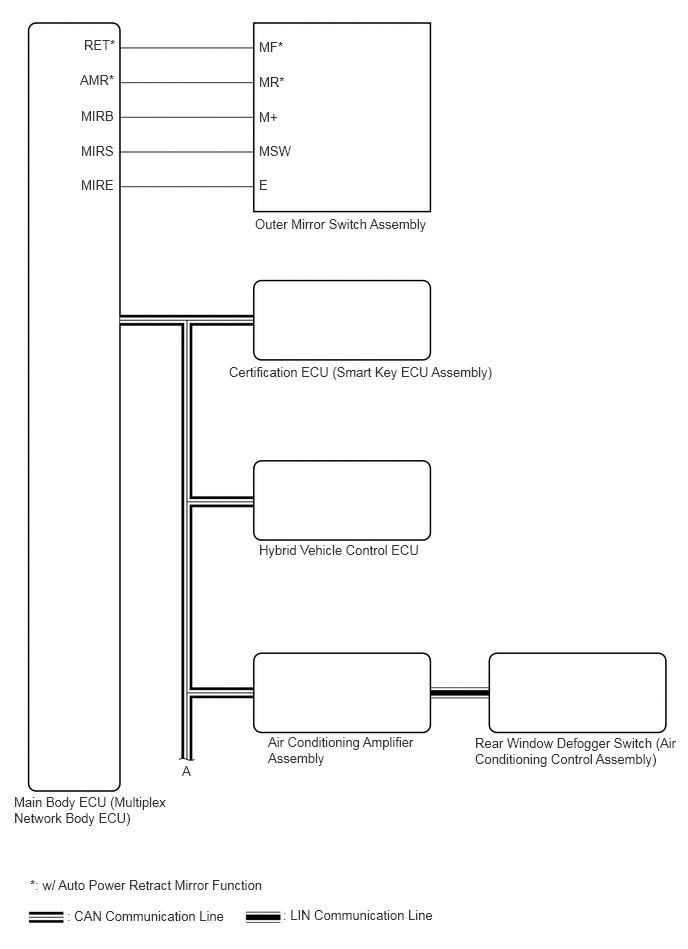

Fig 2: Power Mirror Control (With Memory) Wiring Diagram (07/2019 - 10/2019) (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

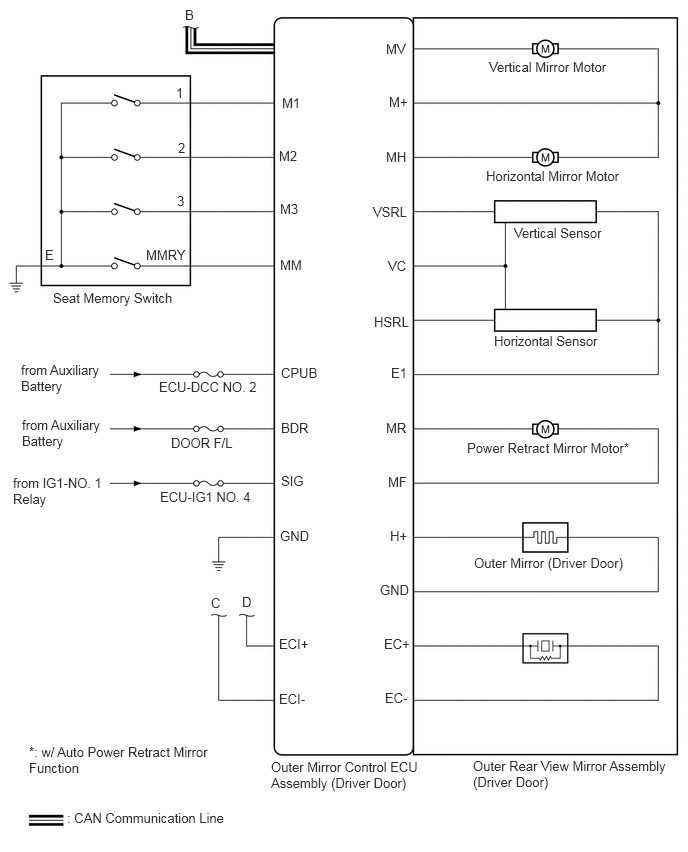

Fig 3: Power Mirror Control (With Memory) Wiring Diagram (07/2019 - 10/2019) (3 Of 3)

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Main Body ECU (Multiplex Network Body ECU)	Outer Mirror Control ECU Assembly	IG signal ACC signal Outer mirror switch assembly signal Mirror position request signal (memory and reactivation function) Mirror position request signal (reverse shift-linked function)	CAN
Outer Mirror Control ECU Assembly	Main Body ECU (Multiplex Network Body ECU)	Outer mirror state signal Seat memory switch signal	CAN
Certification ECU (Smart Key ECU Assembly)	Main Body ECU (Multiplex Network Body ECU)	Key ID signal	CAN
Air Conditioning Amplifier Assembly	Outer Mirror Control ECU Assembly	Mirror heater drive request signal	CAN
Hybrid Vehicle Control ECU	Main Body ECU (Multiplex Network Body ECU)	Reverse signal	CAN
Rear Window Defogger switch (Air Conditioning Control Assembly)	Air Conditioning Amplifier Assembly	Mirror heater switch (rear window defogger switch) operation signal	LIN
