Components [08/2020 - ]

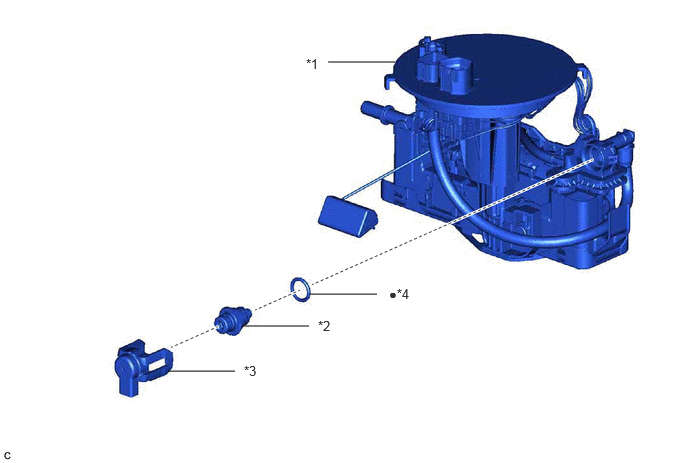

Fig 1: Fuel Main Valve Replacement Components With Torque Specifications
GTY947847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY *2 FUEL MAIN VALVE ASSEMBLY
*3 FUEL PRESSURE REGULATOR HOLDER *4 O-RING
• Non-reusable part - -
