Components [08/2020 - 08/2021]

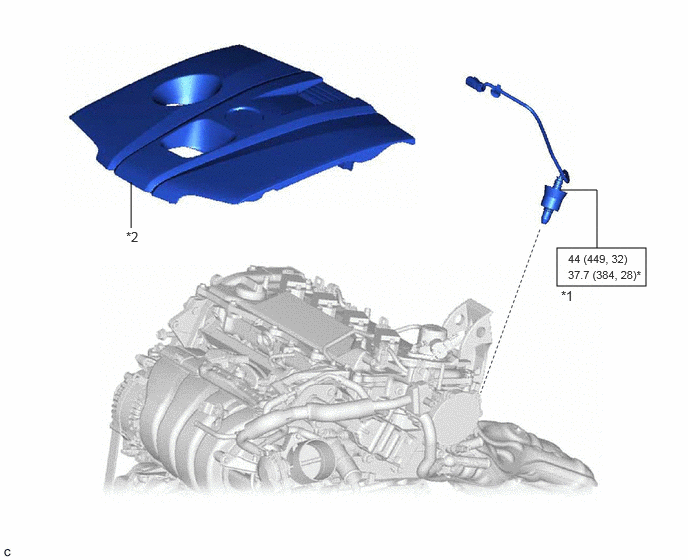

Fig 1: Air Fuel Ratio Sensor (for Sensor 1) Replacement Components With Torque Specifications [08/2020 - 08/2021]
GTY948710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR FUEL RATIO SENSOR *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
