Brake Control System - Service Information
>>
Steering Angle Sensor
>>
Components [06/2018 - ]
Components [06/2018 - ]

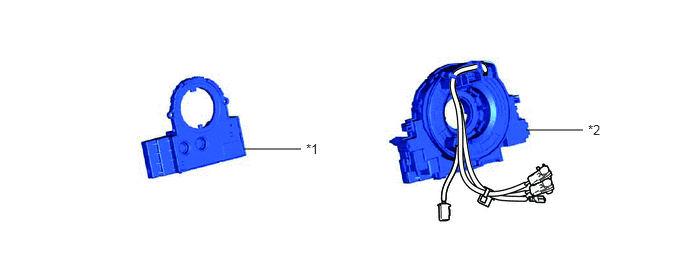

Fig 1: Steering Angle Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
STEERING SENSOR
*2
SPIRAL CABLE SUB-ASSEMBLY
