Installation [06/2018 - ]: Procedure

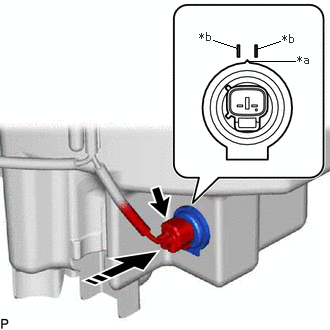

1. Install the level warning switch assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion
   *b	Marking
   	Install in this Direction

   NOTE:

   Make sure that the protrusion of the level warning switch is between the 2 markings.

2. Connect the connector.

See step  2

Refer to INSTALLATION [06/2018 - 08/2021] , or refer to INSTALLATION [08/2021 - 09/2022] , or refer to INSTALLATION [09/2022 - ]
