Components [06/2018 - ]

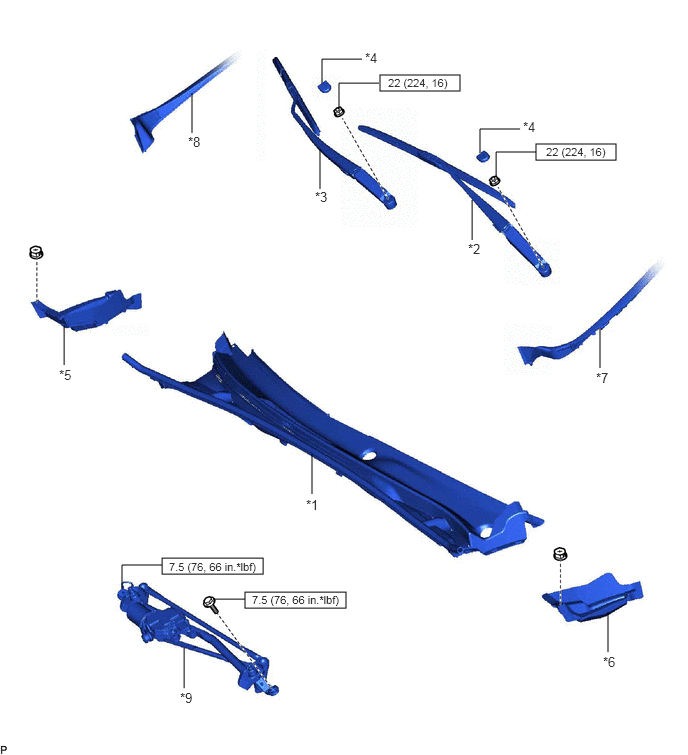

Fig 1: Front Wiper Motor Replacement Components With Torque Specifications (1 Of 2)[06/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*3	FRONT WIPER ARM AND BLADE ASSEMBLY RH	*4	FRONT WIPER ARM HEAD CAP
*5	NO. 2 COWL TOP PANEL INSULATOR	*6	NO. 3 COWL TOP PANEL INSULATOR
*7	WINDSHIELD OUTSIDE MOULDING LH	*8	WINDSHIELD OUTSIDE MOULDING RH
*9	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

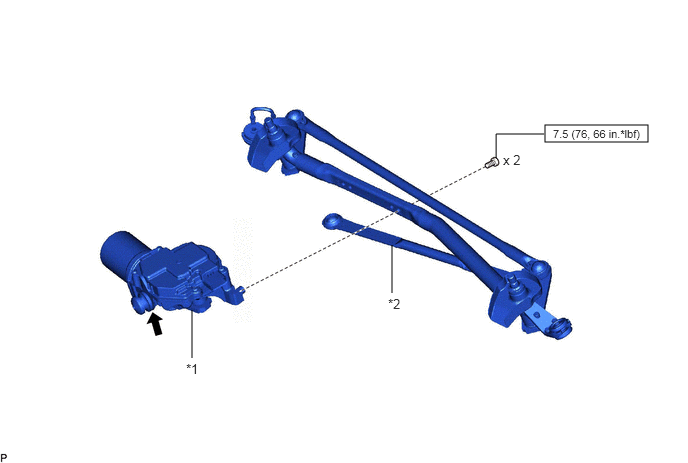

Fig 2: Front Wiper Motor Replacement Components With Torque Specifications [06/2018 - ](2 Of 2)

*1	WINDSHIELD WIPER MOTOR ASSEMBLY	*2	WIPER LINK ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque		MP grease
