Inspection [06/2018 - ]: Procedure
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.

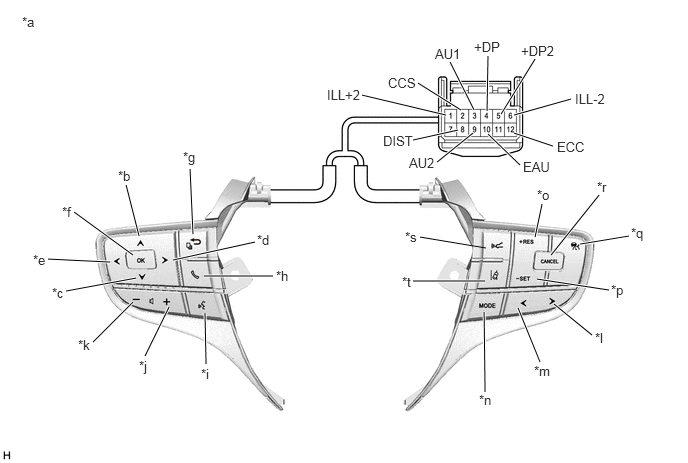

*a Component without harness connected
(Steering Pad Switch Assembly)*b Up *c Down *d Right *e Left *f OK *g Back *h On/off Hook *i Voice *j Volume+ *k Volume- *l Seek+ *m Seek- *n MODE *o +RES *p -SET *q Cruise Control Main *r CANCEL *s Distance Control *t Lane Departure Alert Standard Resistance
Tester Connection Condition Specified Condition 3 (AU1) - 10 (EAU) No switch pushed 95 to 105 kΩ Seek+ switch pushed Below 2.5 Ω Seek- switch pushed 313 to 345 Ω Volume+ switch pushed 950 to 1050 Ω Volume- switch pushed 2955 to 3265 Ω 9 (AU2) - 10 (EAU) No switch pushed 95 to 105 kΩ MODE switch pushed Below 2.5 Ω On/off hook switch pushed 950 to 1050 Ω Voice switch pushed 2955 to 3265 Ω 5 (+DP2) - 10 (EAU) No switch pushed 95 to 105 kΩ Left switch pushed Below 2.5 Ω Up switch pushed 313 to 345 Ω Down switch pushed 950 to 1050 Ω Right switch pushed 2955 to 3265 Ω 4 (+DP) - 10 (EAU) No switch pushed 95 to 105 kΩ OK switch pushed Below 2.5 Ω Back switch pushed 313 to 345 Ω 8 (DIST) - 12 (ECC) No switch pushed 1 MΩ or higher Distance control switch pushed Below 2.5 Ω Lane departure alert switch pushed 228 to 252 Ω 2 (CCS) - 12 (ECC) No switch pushed 1 MΩ or higher Cruise control main switch pushed Below 2.5 Ω CANCEL switch pushed 228 to 252 Ω +RES switch pushed 599 to 661 Ω -SET switch pushed 1463 to 1617 Ω HINT:
If the result is not as specified, replace the steering pad switch assembly.
- Check the illumination.
- Connect a positive (+) lead from the auxiliary battery to terminal 1 (ILL+2) and a negative (-) lead to terminal 6 (ILL-2) of the steering pad switch assembly connector.
- Check that the steering pad switch assembly illumination illuminates.
OK
The steering pad switch assembly illumination illuminates.
HINT:
If the result is not as specified, replace the steering pad switch assembly.
- Measure the resistance according to the value(s) in the table below.
