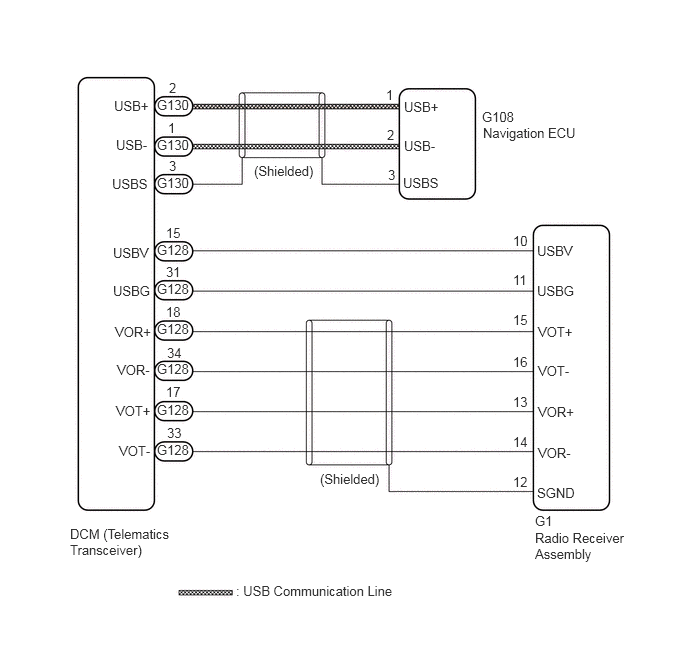

DCM Data Signal Circuit between Navigation ECU and DCM [10/2019 - 09/2022]: Wiring Diagram

GTY962916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
