DCM Data Signal Circuit between Navigation ECU and DCM [10/2019 - 09/2022]: Procedure

  1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the G128 DCM (Telematics Transceiver) connector.
    2. Disconnect the G1 radio receiver assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G128-31 (USBG) - G1-11 (USBG) Always Below 1 Ω
      G128-17 (VOT+) - G1-13 (VOR+) Always Below 1 Ω
      G128-15 (USBV) - G1-10 (USBV) Always Below 1 Ω
      G128-33 (VOT-) - G1-14 (VOR-) Always Below 1 Ω
      G128-34 (VOR-) - G1-16 (VOT-) Always Below 1 Ω
      G128-18 (VOR+) - G1-15 (VOT+) Always Below 1 Ω
      G128-31 (USBG) or G1-11 (USBG) - Body ground Always 10 kΩ or higher
      G128-17 (VOT+) or G1-13 (VOR+) - Body ground Always 10 kΩ or higher
      G128-15 (USBV) or G1-10 (USBV) - Body ground Always 10 kΩ or higher
      G128-33 (VOT-) or G1-14 (VOR-) - Body ground Always 10 kΩ or higher
      G128-34 (VOR-) or G1-16 (VOT-) - Body ground Always 10 kΩ or higher
      G128-18 (VOR+) or G1-15 (VOT+) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the G130 DCM (Telematics Transceiver) connector.

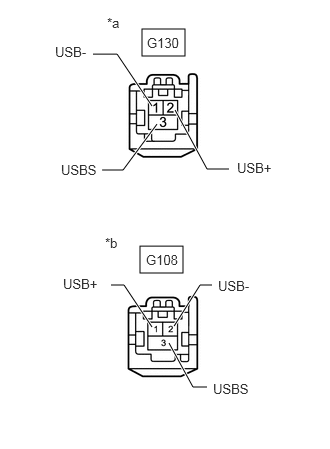

      GTY961821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to DCM (Telematics Transceiver))
      *b Front view of wire harness connector
      (to Navigation ECU)
    2. Disconnect the G108 navigation ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G130-1 (USB-) - G108-2 (USB-) Always Below 1 Ω
      G130-2 (USB+) - G108-1 (USB+) Always Below 1 Ω
      G130-3 (USBS) - G108-3 (USBS) Always Below 1 Ω
      G130-1 (USB-) or G108-2 (USB-) - Body ground Always 10 kΩ or higher
      G130-2 (USB+) or G108-1 (USB+) - Body ground Always 10 kΩ or higher
      G130-3 (USBS) or G108-3 (USBS) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [10/2019 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
