DCM Data Signal Circuit between Navigation ECU and DCM [06/2018 - 10/2019]: Wiring Diagram

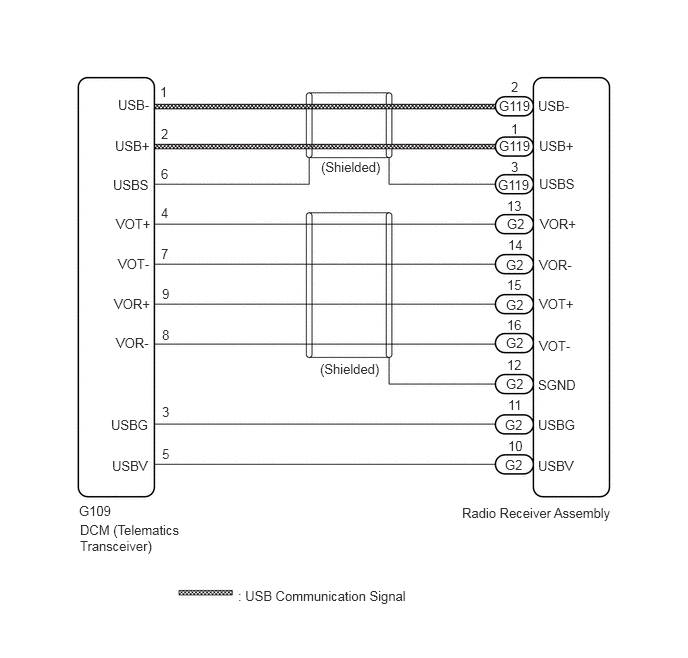

w/o Navigation System

GTY793132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

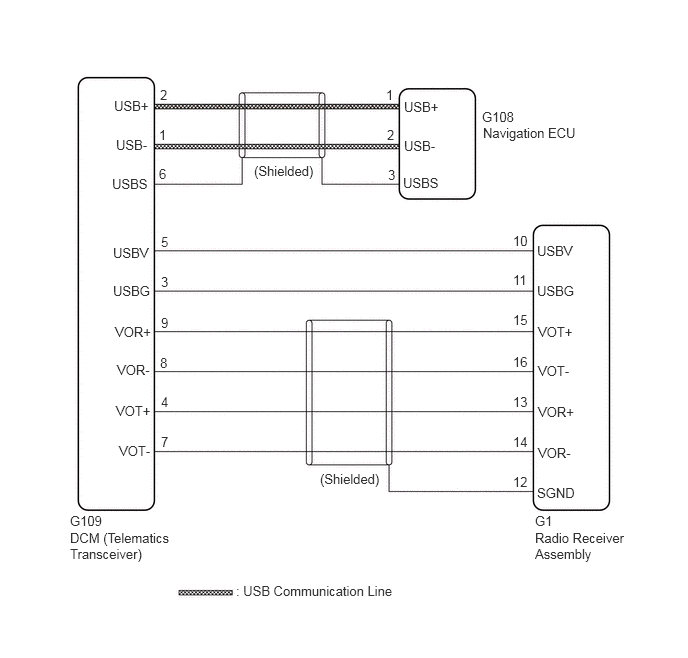

w/ Navigation System

GTY817019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
