DTC B2799-86: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [06/2018 - 08/2020]: Wiring Diagram

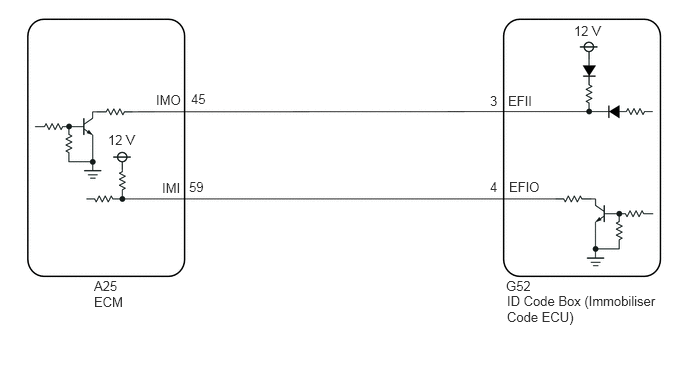

Fig 1: DTC B2799-86: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [06/2018 - 08/2020]
GTY830866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
