DTC B2285: Steering Lock Position Signal Circuit Malfunction [06/2018 - 10/2019]: Wiring Diagram

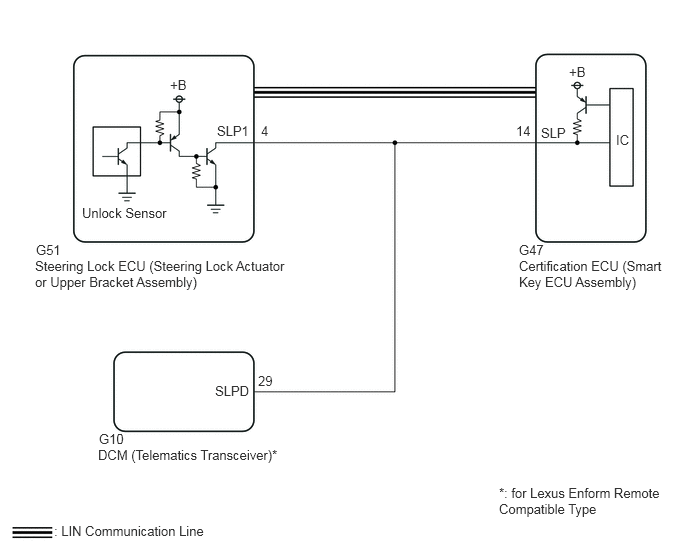

Fig 1: DTC B2285: Steering Lock Position Signal Circuit Malfunction [06/2018 - 10/2019]
GTY831435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
