System Diagram [08/2021 - 07/2022]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function, Gasoline Model)

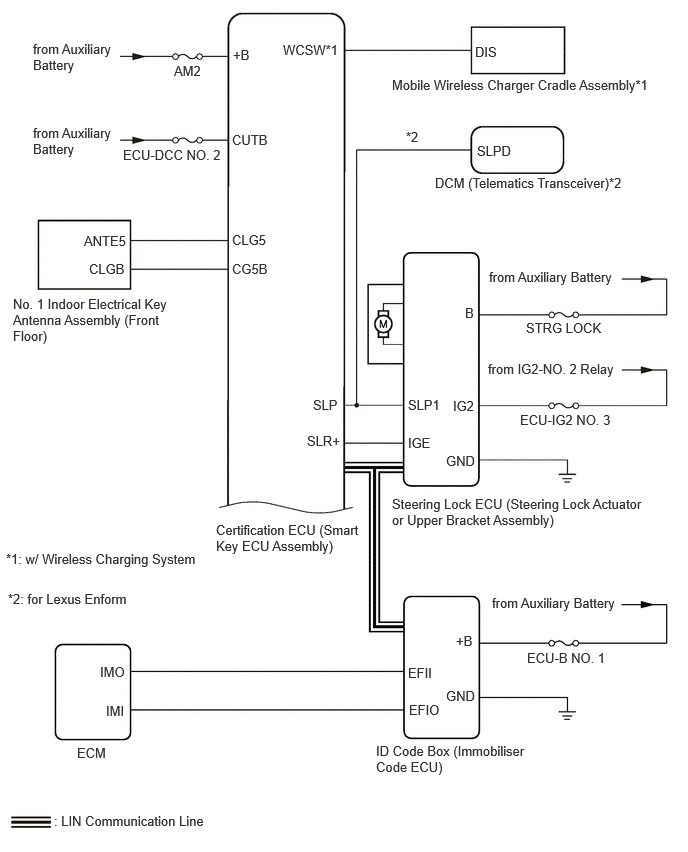

    GTY1087532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

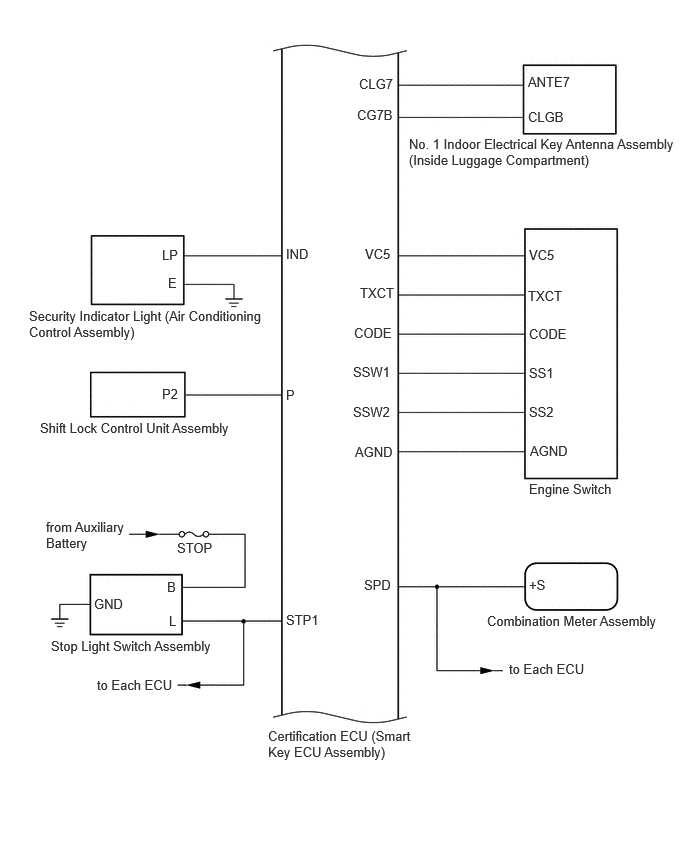

    GTY1087723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

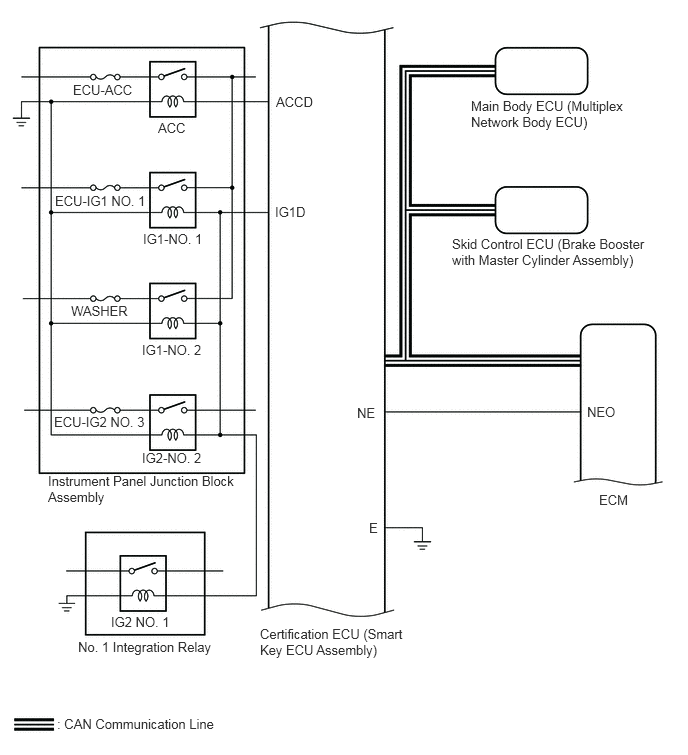

    GTY805961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

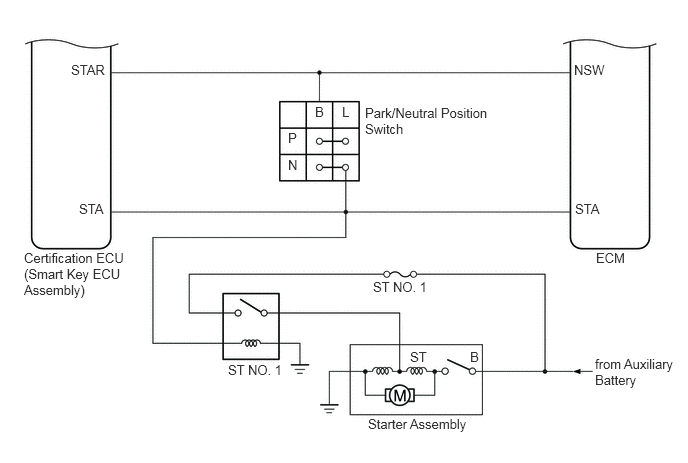

    GTY834674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function, Gasoline Model)

    Refer to SYSTEM DIAGRAM [08/2021 - 07/2022]
