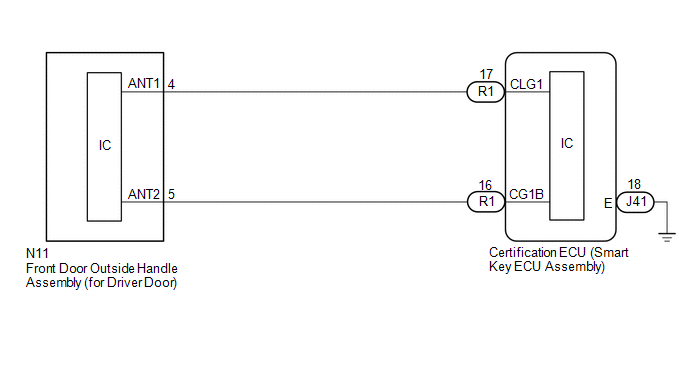

Driver Side Door Entry Unlock Function does not Operate [09/2015 - ]: Wiring Diagram

GTY665080

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
