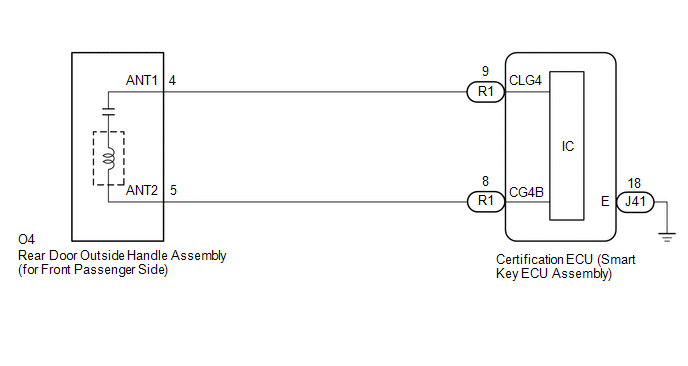

DTC B27A4: Open in Rear Door Electrical Antenna Circuit, Front Passengers Side [09/2015 - ]: Wiring Diagram

GTY674617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
