DTC B27A1: Open in Driver Side Electrical Antenna Circuit [09/2015 - ]: Wiring Diagram

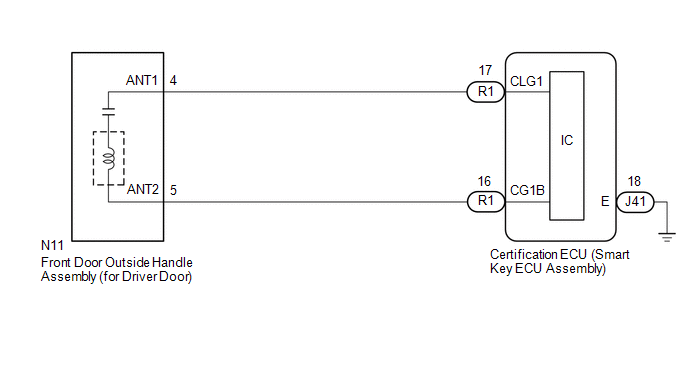

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Wiring Diagram
GTY622116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
