Installation [10/2015 - 11/2017]: Procedure

  1. INSTALL TELEPHONE MICROPHONE ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. INSTALL NO. 1 ROOF CONSOLE BOX COVER

    Refer to PROCEDURE - Step 2

  3. INSTALL MAP LIGHT ASSEMBLY
    1. Connect the 2 connectors.

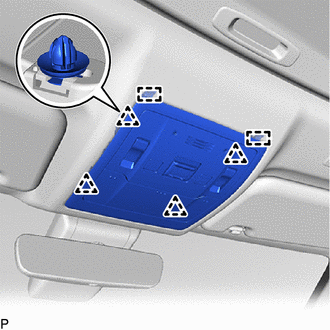

    2. Engage the 2 guides and 4 clips to install the map light assembly.
      GTY1243002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
