Installation [09/2014 - 10/2015]: Procedure

  1. INSTALL TELEPHONE MICROPHONE ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. INSTALL MAP LIGHT ASSEMBLY
    1. Connect the 2 connectors.

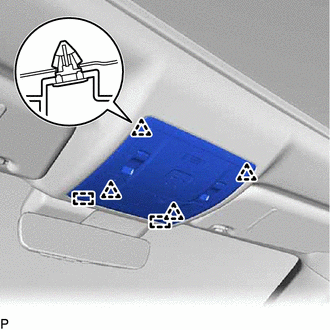

    2. Engage the 2 guides and 4 clips to install the map light assembly.
      GTY516633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
