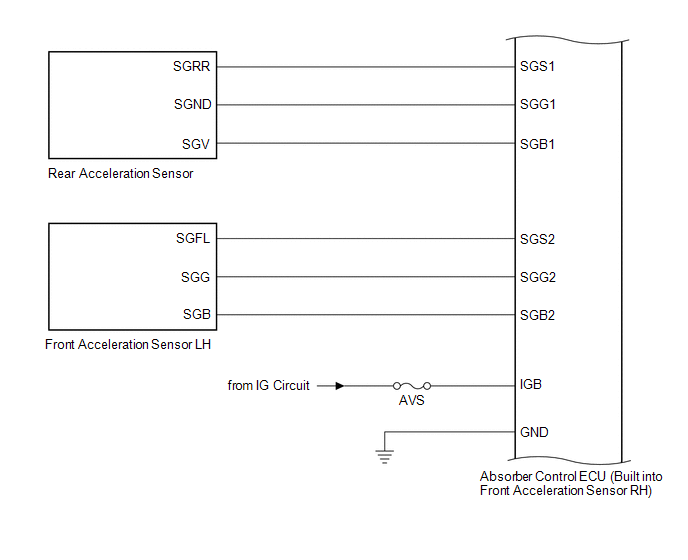

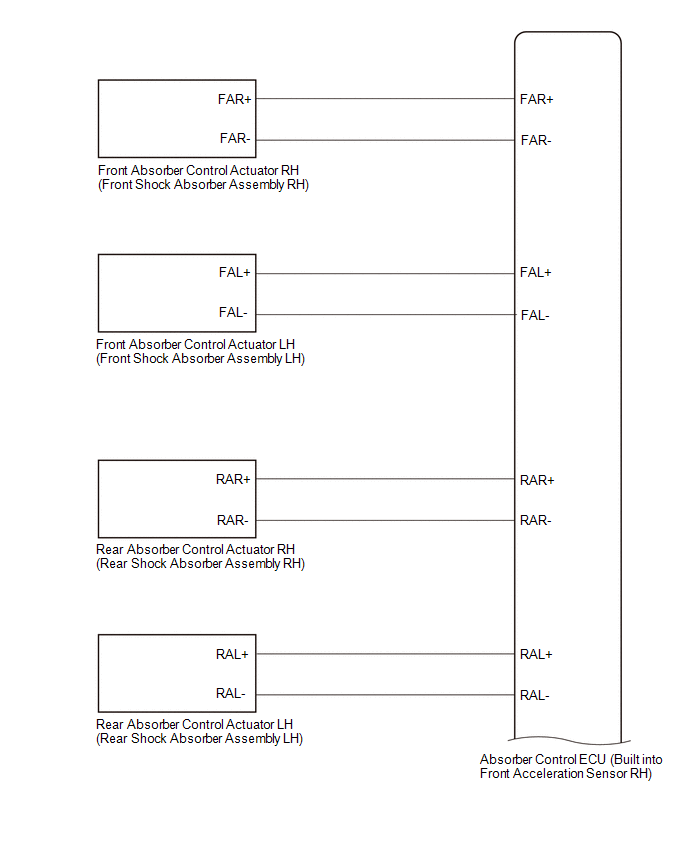

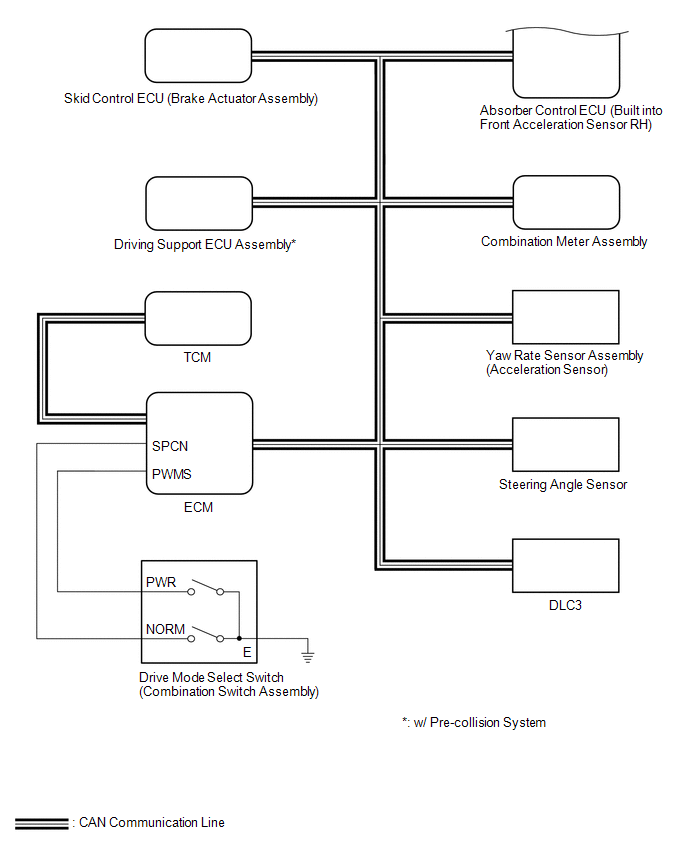

Home >> Lexus >> 2020 >> RC F Base >> Repair and Diagnosis (Single Page) >> Suspension >> Suspension Control Systems >> Adaptive Variable Suspension System - Diagnostics - Introduction >> Adaptive Variable Suspension System >> System Diagram [08/2016 - 11/2017] >> System Diagram [08/2016 - 11/2017]
