Removal [11/2017 - ]: Procedure

REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 11
REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to REMOVAL [11/2017 - ]
REMOVE INLET NO. 1 AIR CLEANER
Refer to PROCEDURE - Step 19

SET NO. 1 CYLINDER TO TDC/COMPRESSION

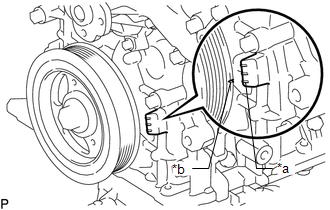

Turn the crankshaft clockwise to align the timing mark (cutout) on the crankshaft pulley with the "0" timing mark on the timing chain cover assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	"0" Timing Mark
*b	Timing Mark (Cutout)

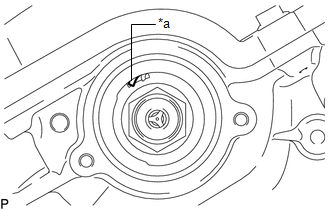

Check that the protrusion on the inside of the camshaft timing gear assembly is at the top.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protrusion

HINT:

If the protrusion is not at the top, rotate the crankshaft clockwise 360° and align the timing marks again.

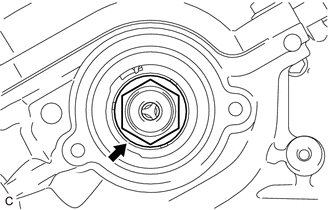

REMOVE CAMSHAFT TIMING GEAR BOLT

Using SST, hold the crankshaft pulley.

Remove the camshaft timing gear bolt.

NOTE:

If the camshaft timing gear bolt has been struck or dropped, replace it.
