Components [09/2015 - ]

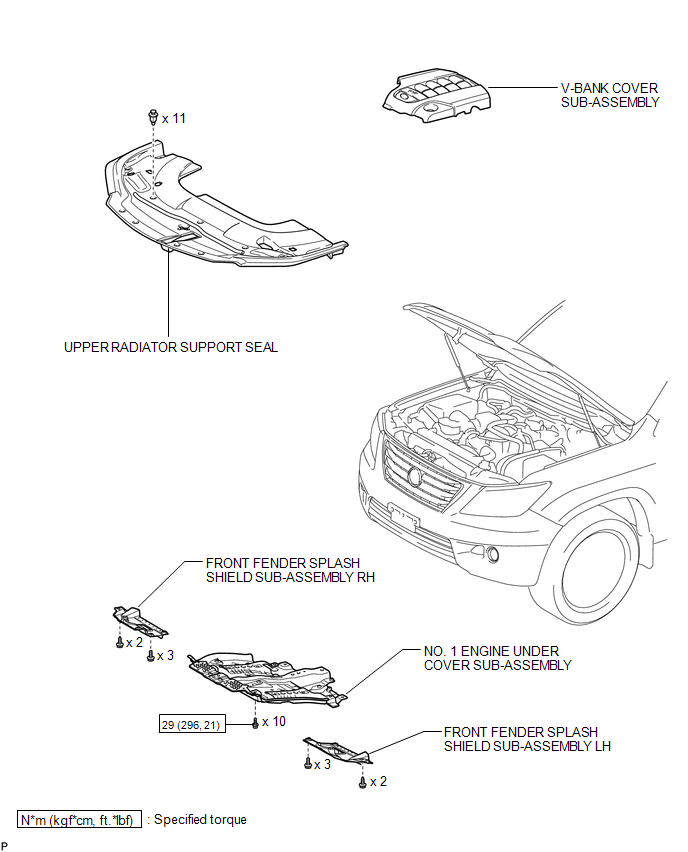

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 5)
GTY616612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

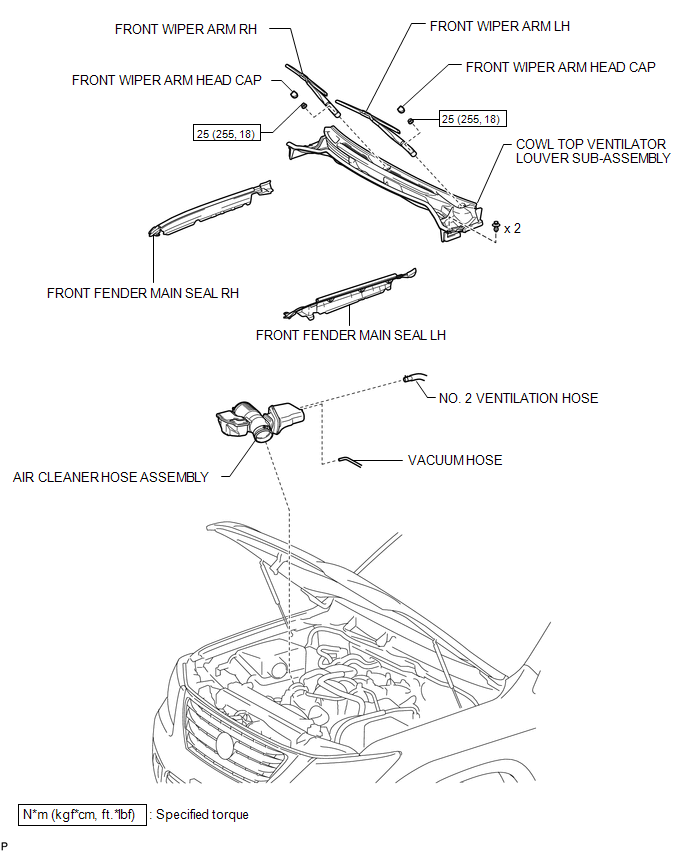

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 5)
GTY948867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Intake Manifold Replacement Components With Torque Specifications (3 Of 5)
GTY583838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

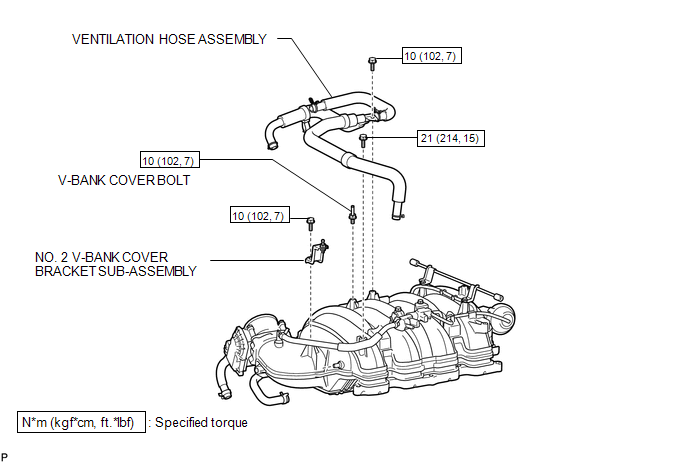

Fig 4: Intake Manifold Replacement Components With Torque Specifications (4 Of 5)
GTY620451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Intake Manifold Replacement Components With Torque Specifications (5 Of 5)
GTY600545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
