Components [12/2017 - 10/2020]
Fig 1: Door Control Receiver Replacement Components With Torque Specifications [12/2017 - 10/2020] (1 Of 3)
| *1 | NEGATIVE BATTERY TERMINAL | *2 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

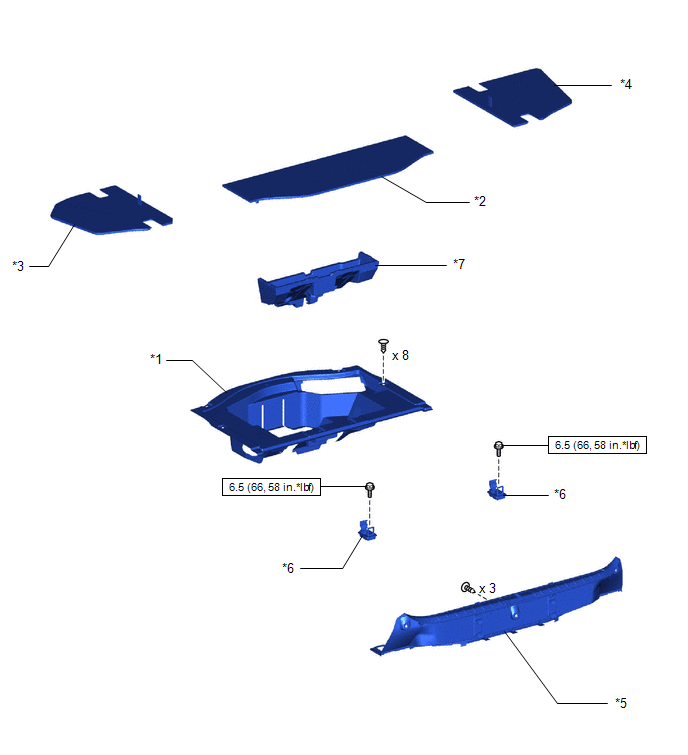

Fig 2: Door Control Receiver Replacement Components With Torque Specifications [12/2017 - 10/2020] (2 Of 3)
| *1 | INNER LOWER LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE COMPARTMENT FLOOR MAT |
| *3 | LUGGAGE COMPARTMENT TRIM COVER LH | *4 | LUGGAGE COMPARTMENT TRIM COVER RH |
| *5 | REAR FLOOR FINISH PLATE | *6 | ROPE HOOK ASSEMBLY |
| *7 | TOOL BOX | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

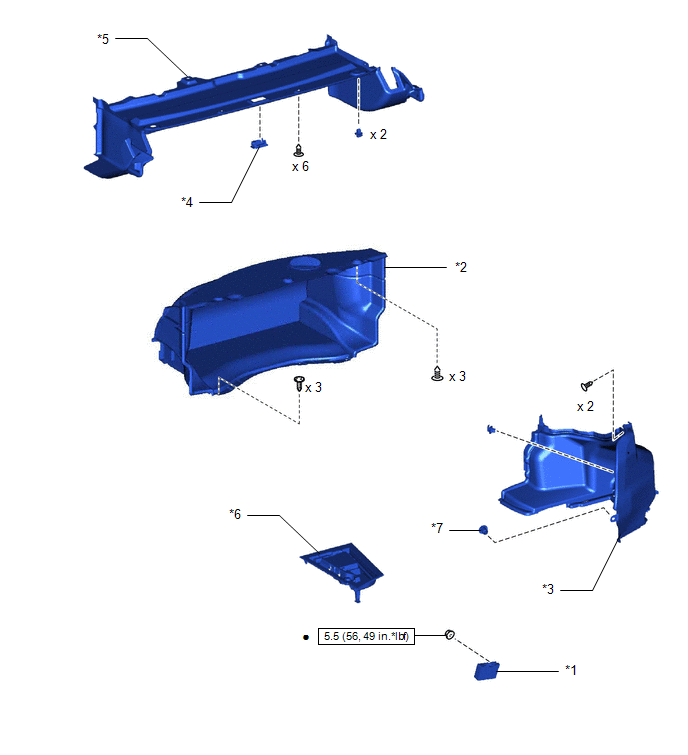

Fig 3: Door Control Receiver Replacement Components With Torque Specifications [12/2017 - 10/2020] (3 Of 3)
| *1 | ELECTRICAL KEY AND TPMS RECEIVER ASSEMBLY | *2 | FRONT LUGGAGE COMPARTMENT TRIM COVER |
| *3 | LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | REAR LUGGAGE COMPARTMENT TRIM COVER | *6 | SIDE TRIM BOX |
| *7 | GROMMET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
