Power Window Control System - Diagnostics - Introduction
>>
Power Window Control System
>>
System Diagram [10/2023 - ]
>>
System Diagram [10/2023 - ]
System Diagram [10/2023 - ]

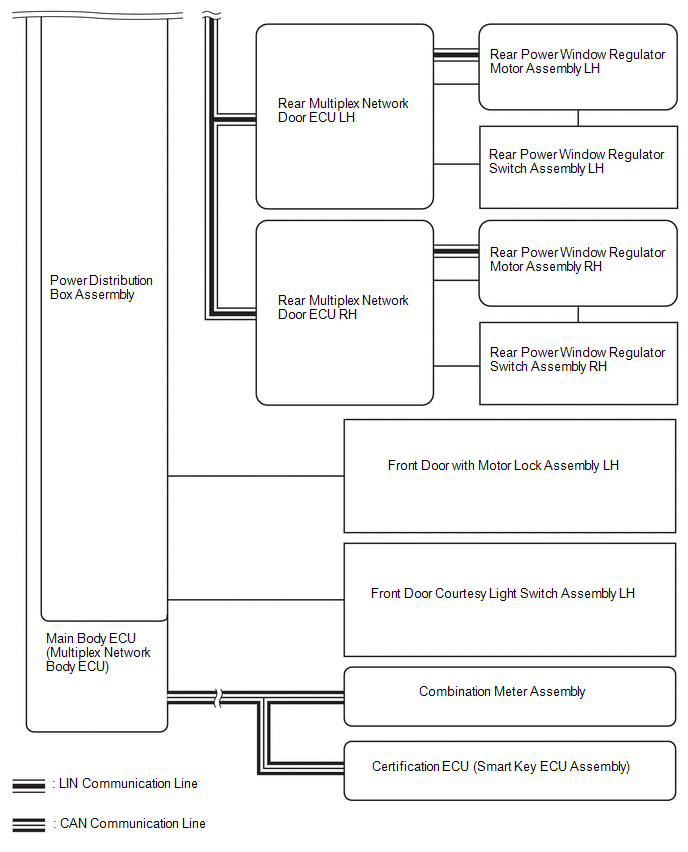

Fig 1: Power Window Control System Diagram (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

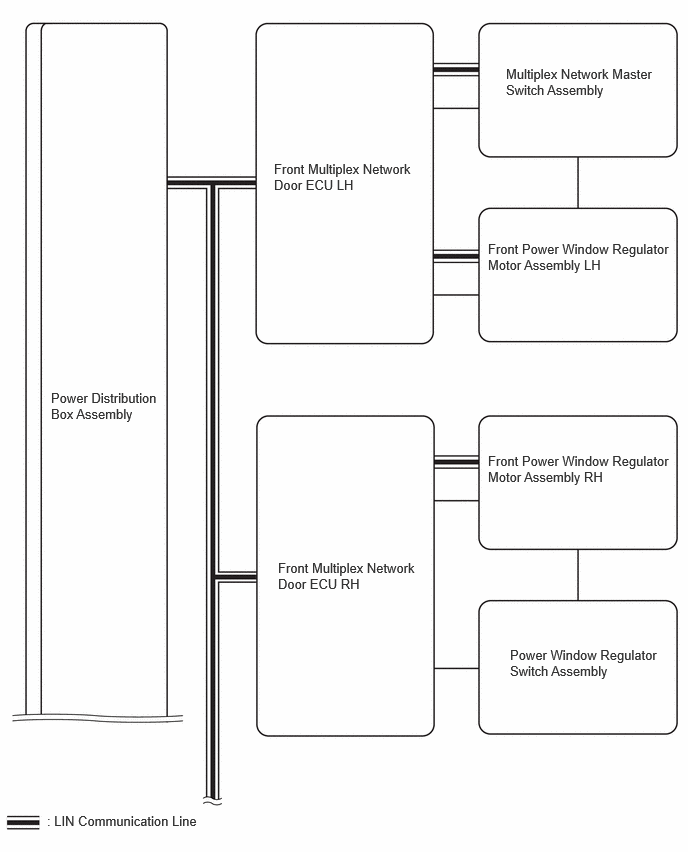

Fig 2: Power Window Control System Diagram (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
