System Diagram [10/2020 - 10/2022]

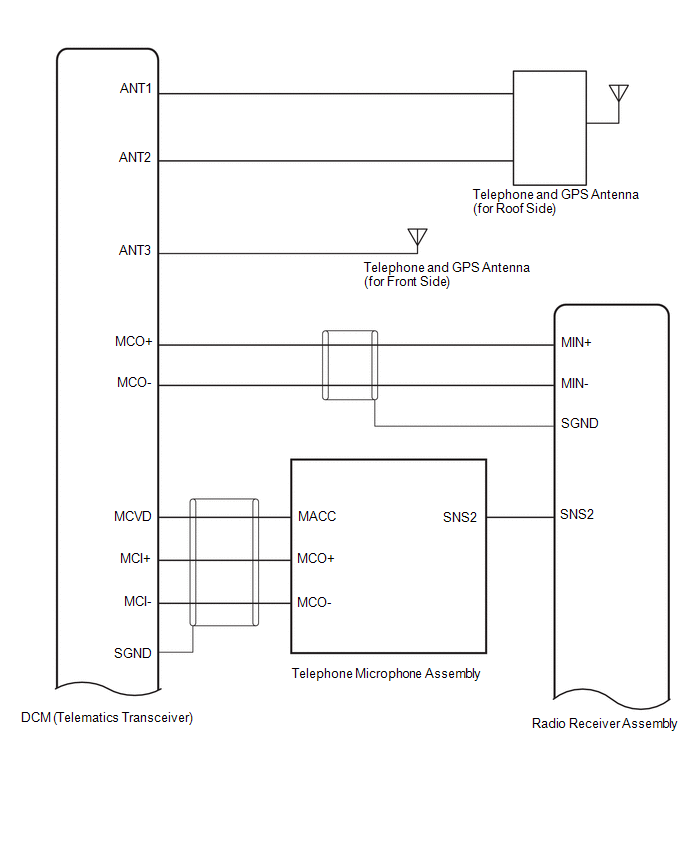

Fig 1: Lexus Enform System Wiring Diagram (1 Of 3)
GTY971938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Safety Connect System Wiring Diagram (3 Of 4)
GTY791703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

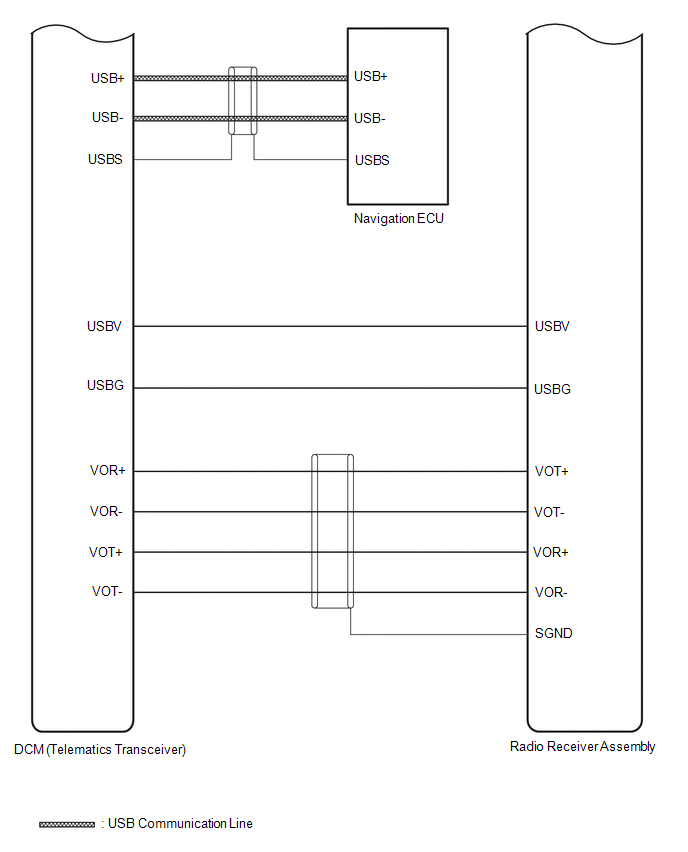

Fig 3: Lexus Enform System Wiring Diagram (3 Of 3)
GTY970809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
