All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [12/2017 - 10/2022]: Wiring Diagram

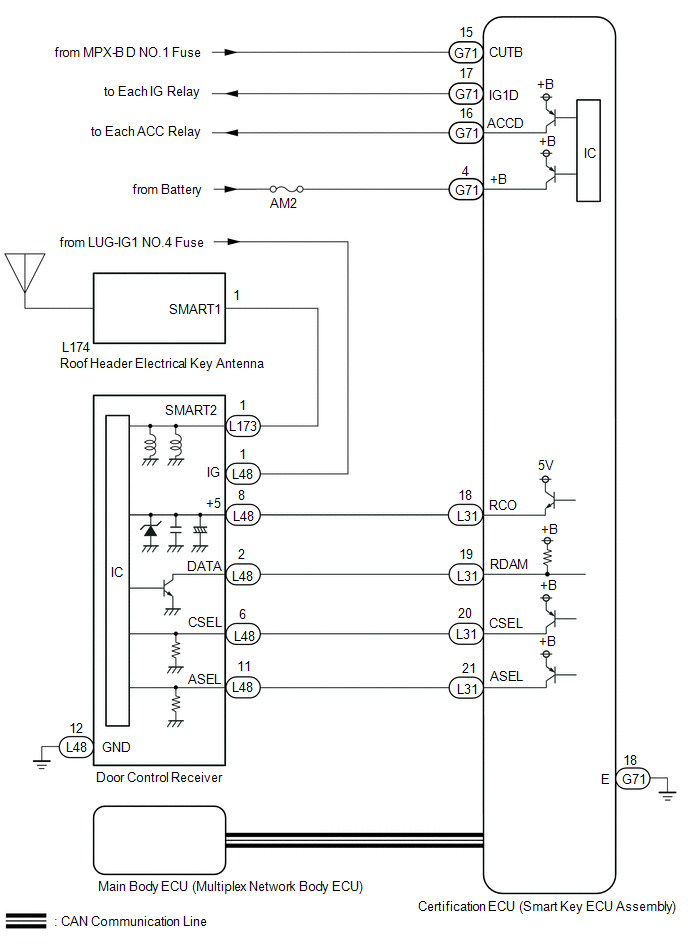

Fig 1: All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [12/2017 - 10/2022]
GTY784047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
