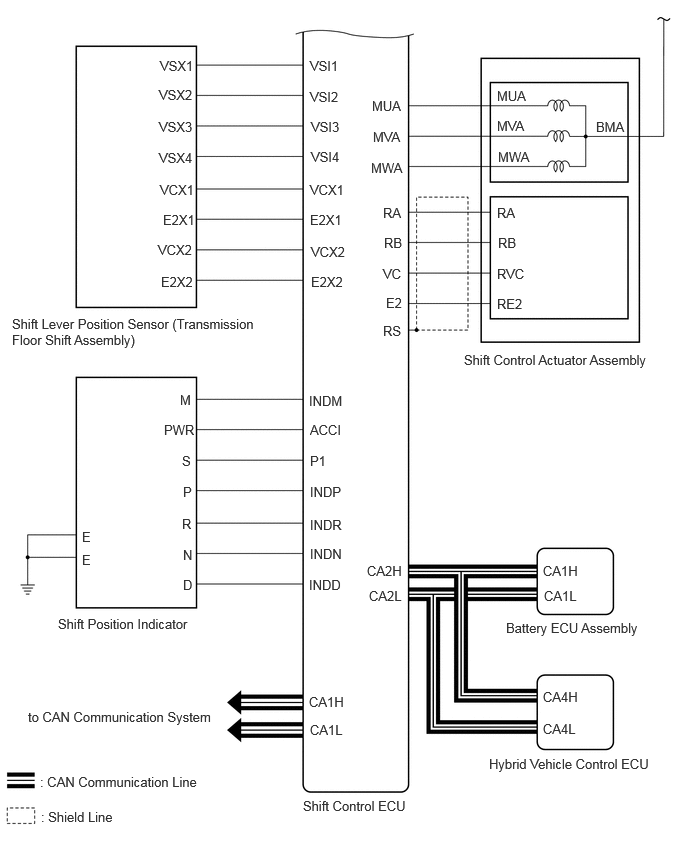

Home >> Lexus >> 2020 >> LC 500h >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Electronic A/T Shift Lever System - Diagnostics - Introduction >> Electronic Shift Lever System >> System Diagram [04/2020 - 05/2023] >> System Diagram [04/2020 - 05/2023]
