Components [01/2017 - ]

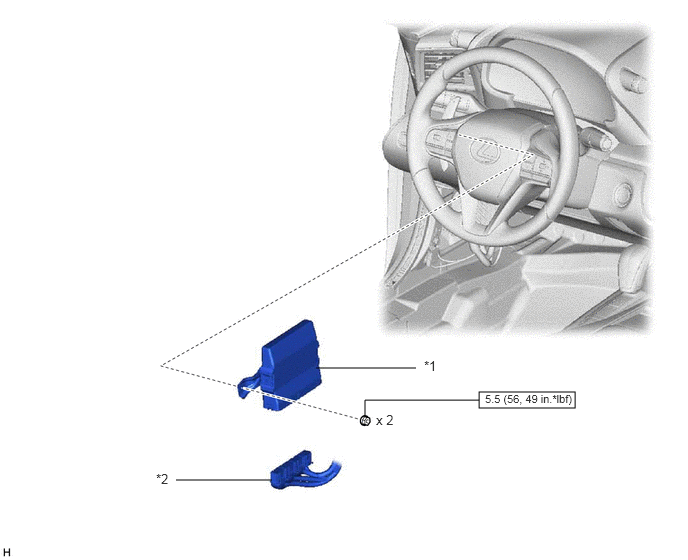

Fig 1: Skid Control ECU Replacement Components With Torque Specifications
GTY801422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SKID CONTROL ECU ASSEMBLY *2 CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
