Components [01/2017 - ]

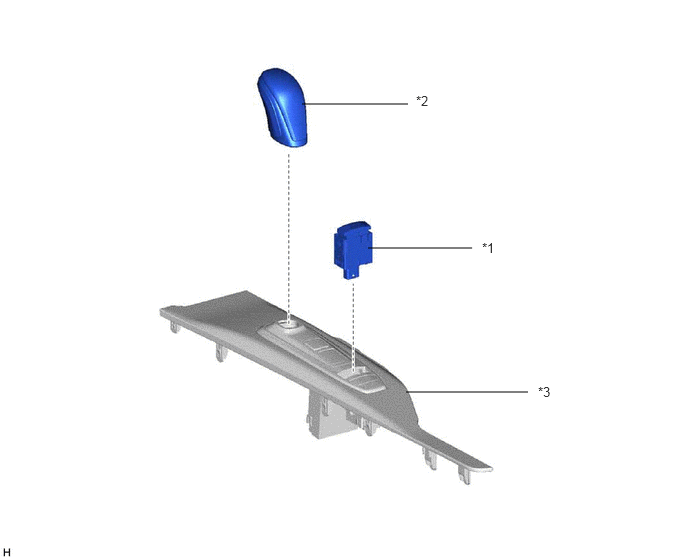

Fig 1: Brake Hold Switch Replacement Components
GTY780616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE HOLD SWITCH *2 SHIFT LEVER KNOB SUB-ASSEMBLY
*3 SHIFTING HOLE COVER ASSEMBLY - -
