Components [01/2017 - ]

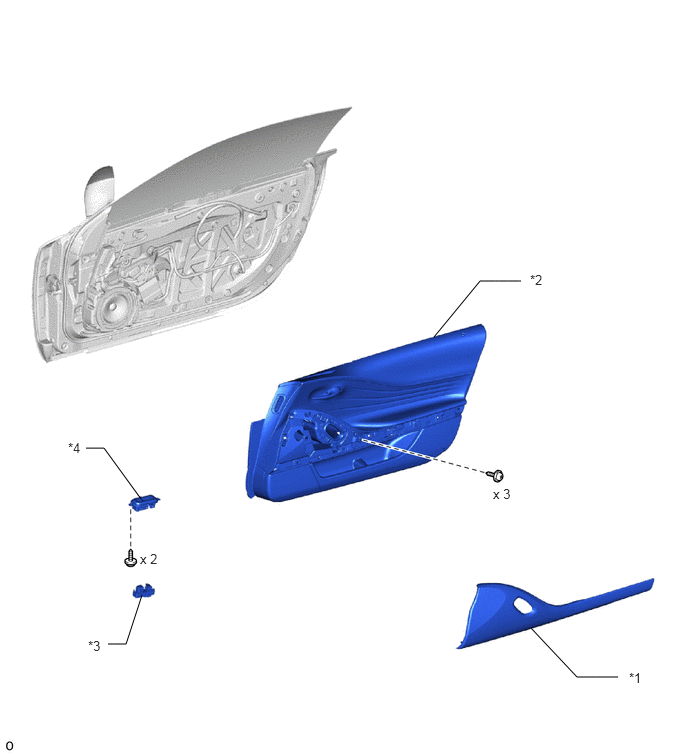

Fig 1: Door Control Switch Replacement Components
GTY778842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR ASSIST GRIP ASSEMBLY RH *2 FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH
*3 POWER WINDOW REGULATOR SWITCH ASSEMBLY *4 SWITCH COVER
