Components [01/2017 - ]

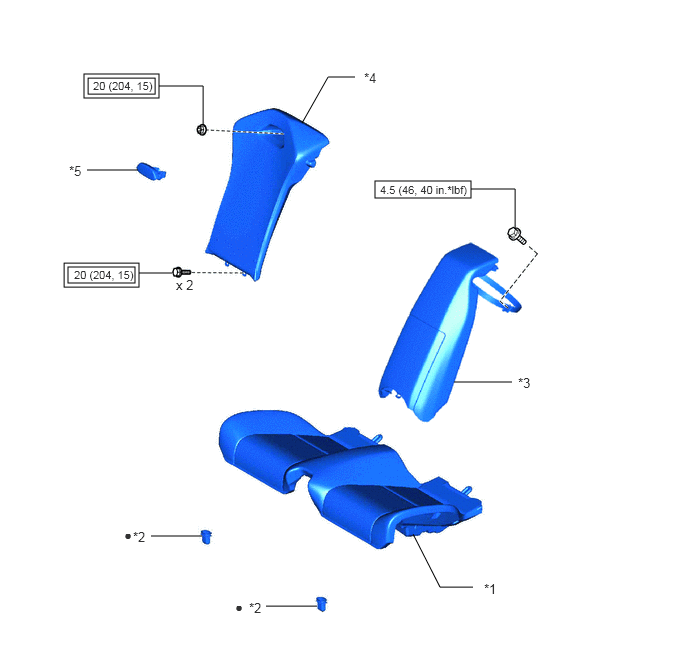

Fig 1: Door Control Receiver Replacement Components With Torque Specifications (1 Of 2)

GTY780453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT CUSHION ASSEMBLY	*2	REAR SEAT CUSHION LOCK HOOK
*3	REAR SEAT SIDE GARNISH	*4	REAR SEATBACK ASSEMBLY RH
*5	REAR SEATBACK COVER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

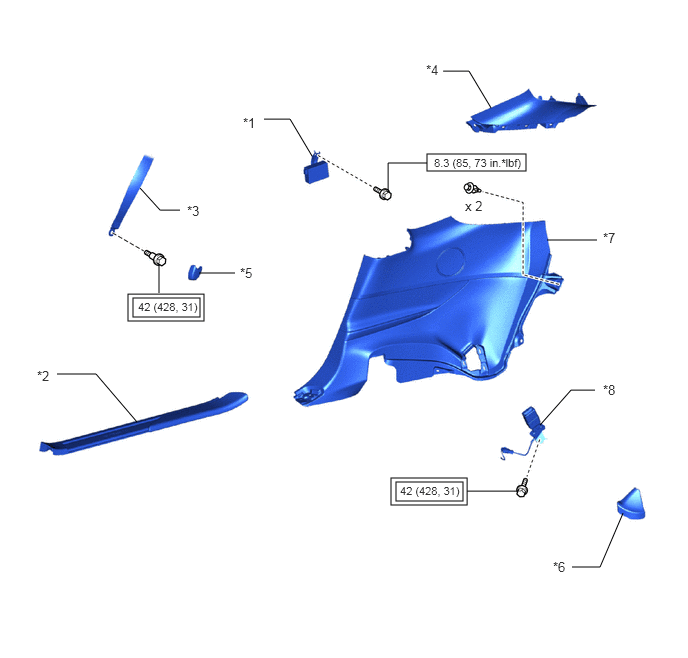

Fig 2: Door Control Receiver Replacement Components With Torque Specifications (2 Of 2)

GTY777845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ELECTRICAL KEY AND TPMS RECEIVER ASSEMBLY	*2	FRONT DOOR SCUFF PLATE RH
*3	FRONT SEAT OUTER BELT ASSEMBLY RH	*4	INNER ROOF SIDE GARNISH RH
*5	OUTER LAP BELT ANCHOR COVER	*6	QUARTER INSIDE TRIM BOARD RH
*7	QUARTER TRIM PANEL ASSEMBLY RH	*8	REAR SEAT INNER BELT ASSEMBLY RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
