Components [10/2016 - 09/2020]
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

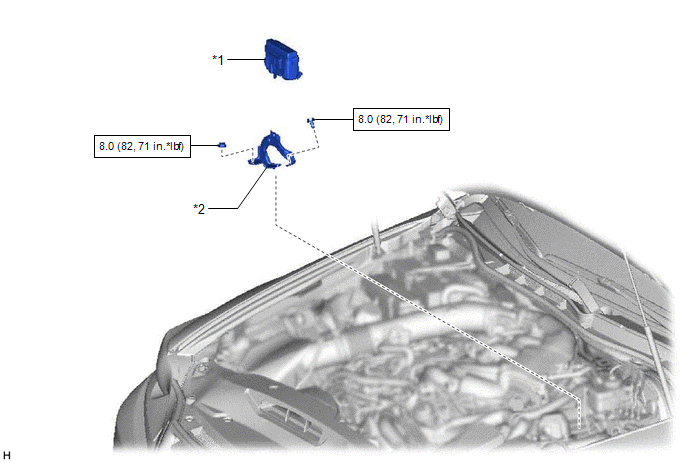

Fig 1: Brake Actuator Replacement Components With Torque Specifications [10/2016 - 09/2020] (1 Of 4)
| *1 | NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY | *2 | WIRING HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

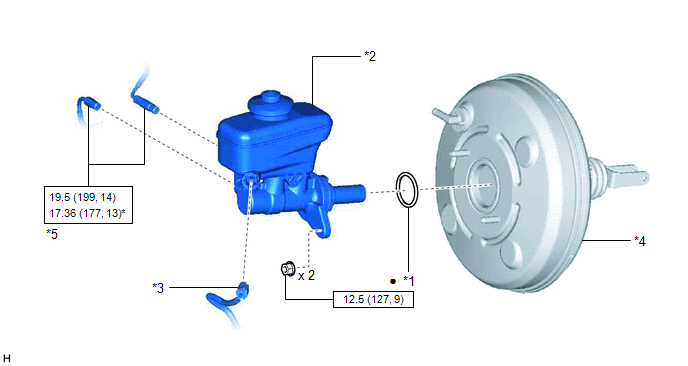

Fig 2: Brake Actuator Replacement Components With Torque Specifications [10/2016 - 09/2020] (2 Of 4)
| *1 | BRAKE MASTER CYLINDER O-RING | *2 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *3 | CONNECTOR | *4 | BRAKE BOOSTER ASSEMBLY |
| *5 | BRAKE LINE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |

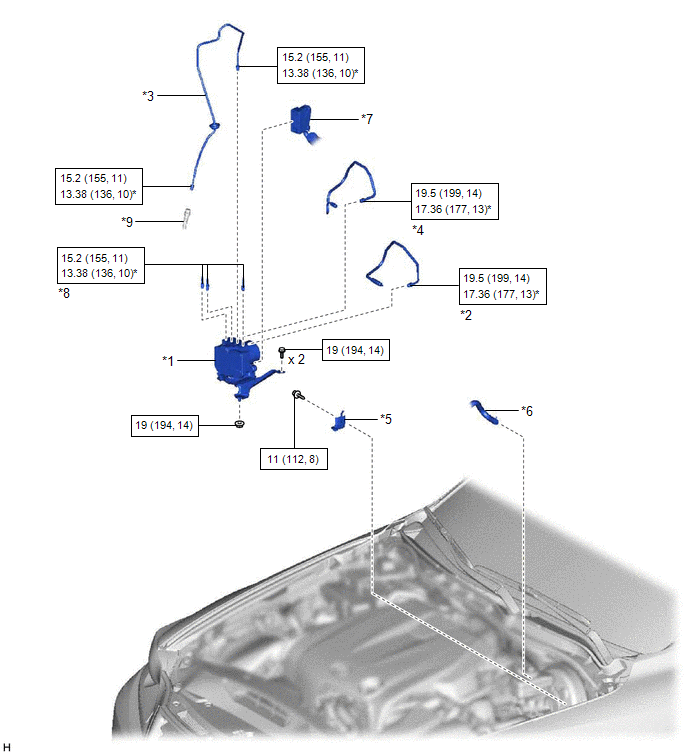

Fig 3: Brake Actuator Replacement Components With Torque Specifications [10/2016 - 09/2020] (3 Of 4)
| *1 | BRAKE ACTUATOR WITH BRACKET | *2 | FRONT NO. 1 BRAKE TUBE |
| *3 | FRONT NO. 3 BRAKE TUBE | *4 | FRONT NO. 5 BRAKE TUBE |
| *5 | NO. 5 BRAKE ACTUATOR BRACKET | *6 | UNION TO CHECK VALVE HOSE |
| *7 | CONNECTOR | *8 | BRAKE LINE |
| *9 | FRONT FLEXIBLE HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench |

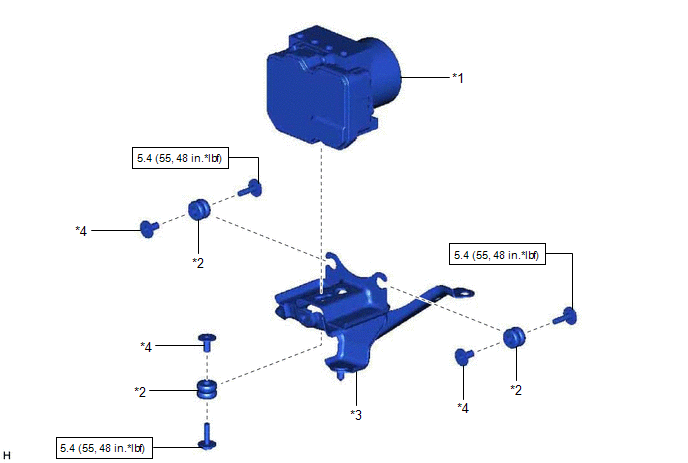

Fig 4: Brake Actuator Replacement Components With Torque Specifications [10/2016 - 09/2020] (4 Of 4)
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE ACTUATOR BOLT CUSHION |
| *3 | BRAKE ACTUATOR BRACKET ASSEMBLY | *4 | BRAKE ACTUATOR CASE COLLAR |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
