Disassembly [09/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HEADLIGHT ECU SUB-ASSEMBLY

    See step  2

  2. REMOVE HEADLIGHT GASKET

    See step  3

  3. REMOVE FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)
    1. Turn the headlight cord with the front turn signal light bulb as shown in the illustration to disconnect them as a unit.

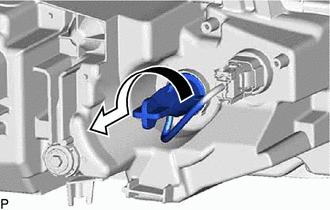

      GTY970983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front turn signal light bulb from the headlight cord.
  4. REMOVE HEADLIGHT CORD (for Bulb Type Turn Signal Light)
    1. Disconnect the connector to remove the headlight cord.
      GTY970973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HEADLIGHT UNIT ASSEMBLY
  6. REMOVE NO. 1 HEADLIGHT CLEARANCE LED UNIT
    1. Using a T20H "TORX" driver, remove the "TORX" screw.
      GTY970971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the No. 1 headlight clearance LED unit as shown in the illustration to separate it.

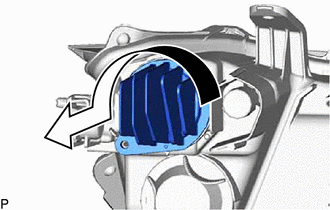

      GTY970552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector to remove the No. 1 headlight clearance LED unit.
      GTY970675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
