Installation [03/2017 - ]: Procedure

  1. INSTALL ENGINE SWITCH

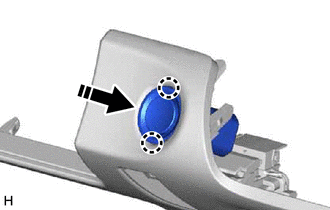

    GTY827391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Attach the claw to install the engine switch as shown in the illustration.
  2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 25 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 25 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 26 [05/2023 - ]

  3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 30 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 30 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 35 [05/2023 - ]

  4. INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 30 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 28 [05/2023 - ]

  5. INSTALL FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 32 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 30 [05/2023 - ]

  6. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 34 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 32 [05/2023 - ]

  7. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [03/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
