System Diagram [08/2015 - 08/2019]

  1. WIPER AND WASHER SYSTEM

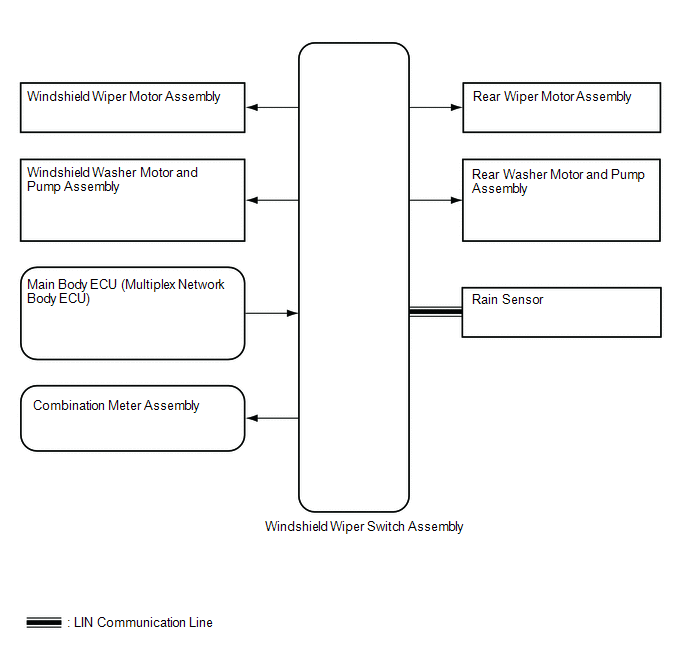

    Fig 1: Wiper And Washer System Diagram
    GTY668010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COMMUNICATION TABLE

    Sender Receiver Signal Communication Method
    Rain sensor Windshield wiper switch assembly
    • HI continuous operation command signal
    • LO continuous operation command signal
    • LO single operation command signal
    • Manual intermittent operation command signal
    		 LIN
    Windshield wiper switch assembly Rain sensor Wiper and washer switch signal LIN
  2. HEADLIGHT CLEANER SYSTEM (w/ Headlight Cleaner System)
    Fig 2: Headlight Cleaner System Diagram
    GTY666310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
